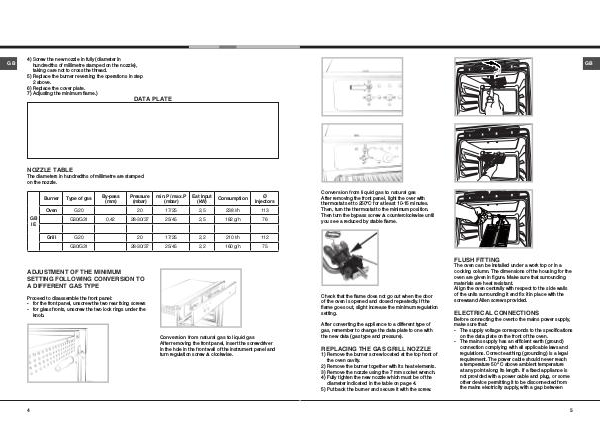

GB
4) Screw the new nozzle in fully (diameter in
hundredths of millimetre stamped on the nozzle),
taking care not to cross the thread.
5) Replace the burner reversing the operations in step
2 above.
6) Replace the cover plate.
7) Adjusting the minimum flame.)
DATA PLATE
NOZZLE TABLE
The diameters in hundredths of millimetre are stamped
on the nozzle.
Pressure
(mbar) min.P / max.P
(mbar) Eat Input
(kW) Consumption Ø
Injectors
20 17/25 2,5 238 l/h 113
28-30/37 25/45 2,5 182 g/h 76
G20 20 17/25 2,2 210 l/h 112
G30/G31 28-30/37 25/45 2,2 160 g/h 75
Burner Type of gas
Oven G20
GB
IE
G30/G31
Grill
By-pass
(mm)
0,42
ADJUSTMENT OF THE MINIMUM
SETTING FOLLOWING CONVERSION TO
A DIFFERENT GAS TYPE
Proceed to disassemble the front panel:
- for the front panel, unscrew the two rear fxing screws
- for glass fronts, unscrew the two lock rings under the
knob.
Conversion from natural gas to liquid gas
After removing the front panel, insert the screwdriver
in the hole in the front wall of the instrument panel and
turn regulation screw A clockwise.
4
