Location Requirements
Electrical Requirements
WARNING
WARNING
Electrical Shock Hazard
Explosion Hazard
Plug into a grounded (earthed) outlet.
gasoline, away from refrigerator.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.

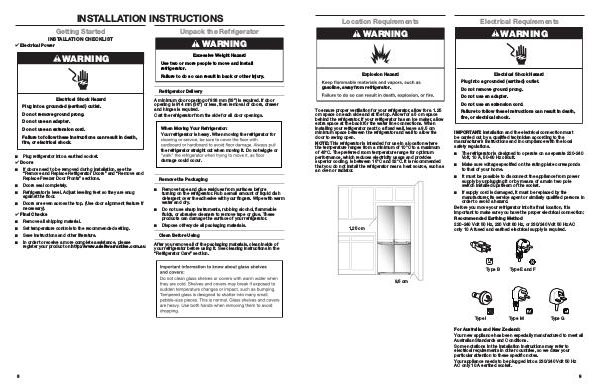

To ensure proper ventilation for your refrigerator, allow for a 1.25
cm space on each side and at the top. Allow for a 5 cm space
behind the refrigerator. If your refrigerator has an ice maker, allow
extra space at the back for the water line connections. When
installing your refrigerator next to a fixed wall, leave a 9.5 cm
minimum space between the refrigerator and wall to allow the
door to swing open.
NOTE: This refrigerator is intended for use in a location where
the temperature ranges from a minimum of 10°C to a maximum
of 43°C. The preferred room temperature range for optimum
performance, which reduces electricity usage and provides
superior cooling, is between 15°C and 32°C. It is recommended
that you do not install the refrigerator near a heat source, such as
an oven or radiator.
Failure to follow these instructions can result in death,
fire, or electrical shock.
IMPORTANT: Installation and the electrical connection must
be carried out by a qualified technician according to the
manufacturer’s instructions and in compliance with the local
safety regulations.
■ ■ The refrigerator is designed to operate on a separate 220-240
Volt, 10 A, 50-60 Hz circuit.
■ ■ Make sure voltage specified on the rating plate corresponds
to that of your home.
■ ■ It must be possible to disconnect the appliance from power
supply by unplugging it or by means of a main two pole
switch installed upstream of the socket.
If supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection:
Recommended Earthing Method
220-240 Volt 50 Hz, 220 Volt 60 Hz, or 230/240 Volt 50 Hz AC
only 10 A fused and earthed electrical supply is required.
■ ■
1,25 cm
Type B
Type E and F
9,5 cm
Type I
Type M
Type G
For Australia and New Zealand:
Your new appliance has been especially manufactured to meet all
Australian Standards and Conditions.
Some notations in the installation instructions may refer to
electrical requirements in other countries, so we draw your
particular attention to these specific notes.
Your appliance needs to be plugged into a 230/240 Volt 50 Hz
AC only 10 A earthed socket.
9
