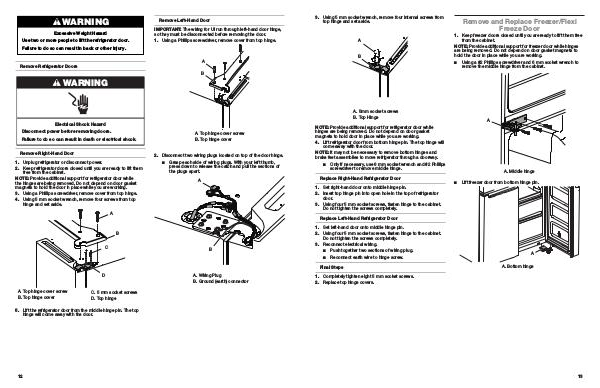

3. Using 5 mm socket wrench, remove four internal screws from
top hinge and set aside.
A
B
Remove and Replace Freezer/Flexi
Freeze Door
1. Keep freezer doors closed until you are ready to lift them free
from the cabinet.
NOTE: Provide additional support for freezer door while hinges
are being removed. Do not depend on door gasket magnets to
hold the door in place while you are working.
■ ■
A. 5mm socket screws
B. Top Hinge
Using a #2 Phillips screwdriver and 6 mm socket wrench to
remove the middle hinge from the cabinet.
A
NOTE: Provide additional support for refrigerator door while
hinges are being removed. Do not depend on door gasket
magnets to hold door in place while you are working.
4. Lift refrigerator door from bottom hinge pin. The top hinge will
come away with the door.
NOTE: It may not be necessary to remove bottom hinges and
brake feet assemblies to move refrigerator through a doorway.
■ ■
Only if necessary, use 6 mm socket wrench and #2 Phillips
screwdriver to remove middle hinge.
Replace Right-Hand Refrigerator Door
A. Middle hinge
■ ■
Lift freezer door from bottom hinge pin.
1. Set right-hand door onto middle hinge pin.
2. Insert top hinge pin into open hole in the top of refrigerator
door.
3. Using four 5 mm socket screws, fasten hinge to the cabinet.
Do not tighten the screws completely.
Replace Left-Hand Refrigerator Door
1. Set left-hand door onto middle hinge pin.
2. Using four 5 mm socket screws, fasten hinge to the cabinet.
Do not tighten the screws completely.
3. Reconnect electrical wiring.
■ ■ Push together two sections of wiring plug.
■ ■ Reconnect earth wire to hinge screw.
Final Steps
A
A. Bottom hinge
1. Completely tighten eight 5 mm socket screws.
2. Replace top hinge covers.
13
