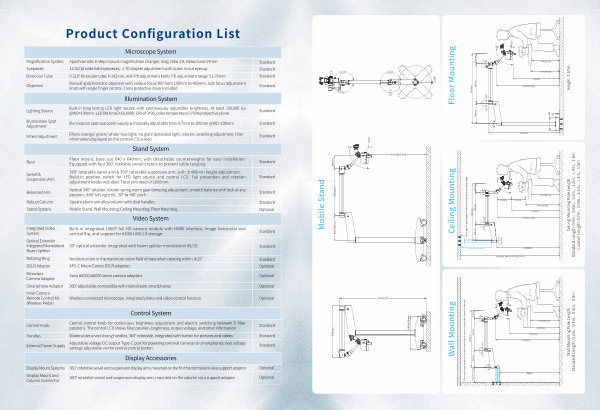

Product Configuration List |
|
Magnification System
Eyepieces
Binocular Tube
Objective
Lighting Source
|
Microscope System
Apochromatic 6-step manual magnification changer, mag. ratio 1:9, stereo base 24mm
12.5X / 18 wide field eyepieces, ± 7D diopter adjustment with screw in-out eyecup
0-210 ° binocular tube, f = 182mm, with PD adjustment knob. PD adjustment range: 51-76mm
Manual apochromatic objective with various focus WD from 190mm to 460mm, side focus adjustment knob with single finger control, 1 lens protective cover included
Illumination System
Built-in long-lasting LED light source with continuously adjustable brightness. At least 100,000 lux @ WD = 190mm. LED life time≥60,000h, CRI of ≥90, color temperature 5700K @ objective plane
|
Standard Standard Standard
Standard
Standard
|
170.0 °
170.0 °
|
170.0 °
180.0 °
|
± 180 ° |
Floor Mounting |
1620mm |
480mm 900mm 240mm |
|||||||||
± 60 ° |
|
± 170 °
-170 ° + 180 °
|
+ 60 °-45 ° |
MAX. 1490mm |
1090mm |
410-860mm
MIN. 690mm
300
|
95 |
Height: 1.67m |
|||||||||||
Illumination Spot Adjustment |
Illumination spot size continuously & manually adjustable from 9.7mm to 100mm @ WD = 190mm |
Standard |
360 ° |
Filters Adjustment |
Filters: orange / green / white / true light / no glare( polarized light); electric switching adjustment, filter information displayed on the central LCD screen |
Standard |
± 60 ° |
1670mm |
|||||||||||||
Stand System |
+ 60 °-45 ° |
||||||||||||||||
|
Base
Swivel & Suspension Arm
Balanced Arm
Robust Column
Stand Options
Integrated Video System
Optical Extender Integrated Monolateral Beam Splitter
Floor mount, base size 640 x 640mm, with detachable counterweights for easy installation. Equipped with four 360 ° lockable swivel casters to prevent cable tangling
360 ° rotatable swivel arm & 350 ° rotatable suspension arm, with ± 400mm height adjustment. Build-in position switch for LED light source and central LCD. Fall prevention and rotation adjustment knobs included. Total arm reach≥1600mm
Vertical 340 ° rotation, torsion spring worm gear damping adjustment, smooth balance with lock at any position; ± 60 ° left-right tilt,-30 ° to + 60 ° pitch
Square aluminum alloy column with dual handles
Mobile Stand; Wall Mounting; Ceiling Mounting; Floor Mounting
Video System
Built-in integrated 1080P full HD camera module with HDMI interface, image horizontal and vertical flip, and support for 64GB USB 2.0 storage
30 ° optical extender integrated with beam splitter monolateral 80 / 20
Rotating Ring No obstruction in the maximum vision field of view when rotating within ± 25 °
|
Standard
Standard
Standard
Standard Optional
Standard
Standard
Standard
|
Mobile Stand |
240mm 480.00mm 900mm |
690-1490mm |
Ceiling Mounting |
We supply 11 type lengths of columns to adjust to your ceiling height.
1620mm 480mm 900mm 240mm
± 170 °-170 ° + 180 °
Ceiling Mounting Column
|
+ 60 °-45 °
400mm
360 °
± 60 °
400mm
From 2600 up to max 3600mm
MAX. 1770mm
1800mm
1370mm
410-860mm
MIN. 970mm
|
Ceiling Mounting Pole Length Standard Length: 0.6m 、 0.8m 、 1.0m 、 1.2m 、 1.4m 、 1.6m
Custom Length: 0.7m 、 0.9m 、 1.1m 、 1.3m 、 1.5m
|
|||||||||
DSLR Adaptor |
APS-C Nikon / Canon DSLR adaptors |
Optional |
|||||||||||||||||||||||||||||||||
Mirrorless Camera Adaptor |
Sony α5000 / α6000 series camera adaptors |
Optional |
|||||||||||||||||||||||||||||||||
Smartphone Adaptor |
360 ° adjustable, compatible with mainstream smartphones |
Optional |
|||||||||||||||||||||||||||||||||
|
Inner Camera Remote Control Kit( Wireless Pedal)
Control Knob
Handles
External Power Supply
Display Mount Systems
Display Mount and Column Connector
|
Wireless connected microscope, integrated photo and video control function
Control System
Central control knob for continuous brightness adjustment and electric switching between 5 filter positions. The central LCD shows filter position, brightness, output voltage, and other information
Bilateral decurved strong handles, 360 ° rotatable, integrated with button for pictures and videos
Adjustable voltage DC output Type-C port for powering external cameras or smartphones; two voltage settings adjustable via the central control button
Display Accessories
360 ° rotatable swivel and suspension display arm, mounted on the first horizontal arm via a support adaptor
360 ° rotatable swivel and suspension display arm, mounted on the column via a support adaptor
|
Optional
Standard
Standard Standard
Optional Optional
|
990mm |
1670mm |
640x640mm |
Wall Mounting |
We supply 4 type lengths of the wall mounting columns to change the distance to the wall. |
1620mm |
Distance to wall 480mm 900mm 240mm |
± 170 °-170 ° + 180 ° |
360 ° |
+ 60 °-45 °
Wall Mounting Column
|
± 60 ° |
1815mm
1415mm
1700mm
410-860mm
1015mm
|
Wall Mounting Pole Length Standard Length: 0.2m 、 0.4m 、 0.6m 、 0.8m |
||||||||||||||||||||
