5
6
7
1 8
2
9
3
10
11
12
13
14
4 15

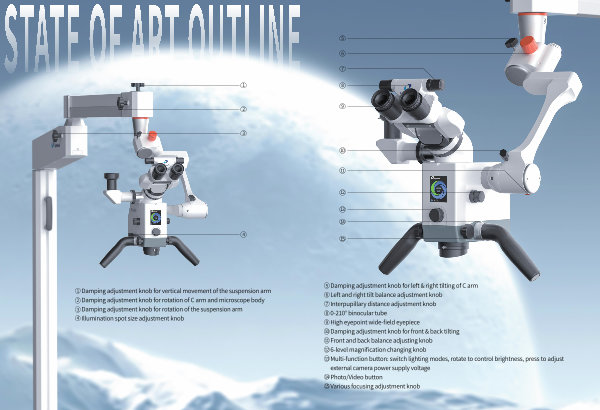

1 2 3 4
Damping adjustment knob for vertical movement of the suspension arm Damping adjustment knob for rotation of C arm and microscope body Damping adjustment knob for rotation of the suspension arm Illumination spot size adjustment knob
5 6 7 8 9 10 11 12 13
14 15
Damping adjustment knob for left & right tilting of C arm Left and right tilt balance adjustment knob Interpupillary distance adjustment knob 0-210 ° binocular tube High eyepoint wide-field eyepiece Damping adjustment knob for front & back tilting Front and back balance adjusting knob 6-level magnification changing knob Multi-function button: switch lighting modes, rotate to control brightness, press to adjust external camera power supply voltage Photo / Video button Various focusing adjustment knob
