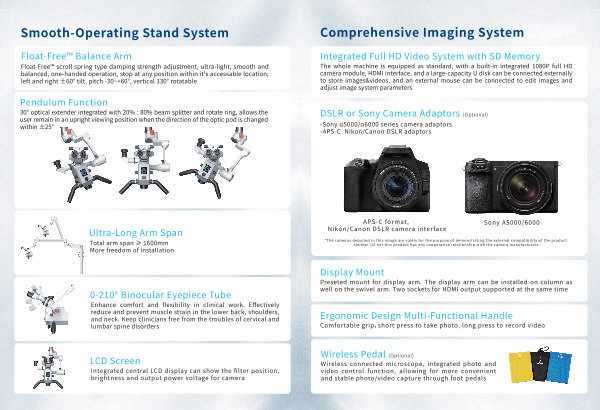

Smooth-Operating Stand System
Float-Free™ Balance Arm
Float-Free™ scroll spring type damping strength adjustment, ultra-light, smooth and balanced, one-handed operation, stop at any position within it ' s accessable location; left and right ± 60 ° tilt, pitch-30 ~+ 60 °, vertical 330 ° rotatable
Pendulum Function
30 ° optical extender integrated with 20 %: 80 % beam splitter and rotate ring, allows the user remain in an upright viewing position when the direction of the optic pod is changed within ± 25 °
Comprehensive Imaging System
Integrated Full HD Video System with SD Memory
The whole machine is equipped as standard, with a built-in integrated 1080P full HD camera module, HDMI interface, and a large-capacity U disk can be connected externally to store images & videos, and an external mouse can be connected to edit images and adjust image system parameters
DSLR or Sony Camera Adaptors( Optional)
-Sony α5000 / α6000 series camera adaptors-APS-C Nikon / Canon DSLR adaptors
Ultra-Long Arm Span
Total arm span ≥ 1600mm More freedom of installation
APS-C format, Nikon / Canon DSLR camera interface
Sony A5000 / 6000
* The cameras depicted in this image are solely for the purpose of demonstrating the external compatibility of the product. Neither US nor this product has any cooperative relationship with the camera manufacturers.
0-210 ° Binocular Eyepiece Tube
Enhance comfort and flexibility in clinical work. Effectively reduce and prevent muscle strain in the lower back, shoulders, and neck. Keep clinicians free from the troubles of cervical and lumbar spine disorders
Display Mount
Preseted mount for display arm. The display arm can be installed on column as well on the swivel arm. Two sockets for HDMI output supported at the same time
Ergonomic Design Multi-Functional Handle
Comfortable grip, short press to take photo, long press to record video
LCD Screen
Integrated central LCD display can show the filter position, brightness and output power voltage for camera
Wireless Pedal( Optional)
Wireless connected microscope, integrated photo and video control function, allowing for more convenient and stable photo / video capture through foot pedals
