About Micro-Epsilon
For more than 50 years , we have continuously offered reliable , high performance , unique solutions particularly when high precision measurement or inspection is required .

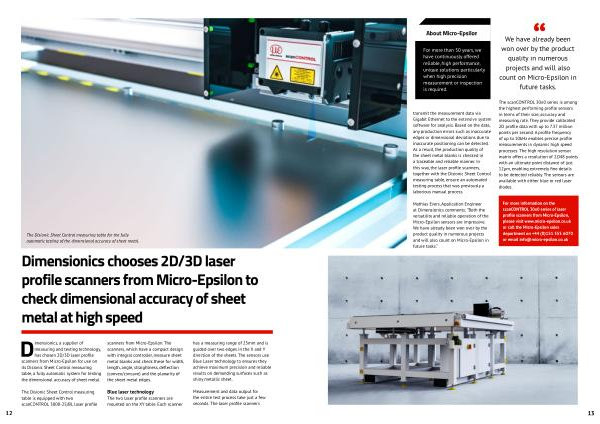

transmit the measurement data via Gigabit Ethernet to the extensive system software for analysis . Based on the data , any production errors such as inaccurate edges or dimensional deviations due to inaccurate positioning can be detected . As a result , the production quality of the sheet metal blanks is checked in a traceable and reliable manner . In this way , the laser profile scanners , together with the Disionic Sheet Control measuring table , ensure an automated testing process that was previously a laborious manual process .
Mathias Evers , Application Engineer at Dimensionics comments : “ Both the versatility and reliable operation of the Micro-Epsilon sensors are impressive . We have already been won over by the product quality in numerous projects and will also count on Micro-Epsilon in future tasks .”
We have already been won over by the product quality in numerous projects and will also count on Micro-Epsilon in future tasks .
The scanCONTROL 30x0 series is among the highest performing profile sensors in terms of their size , accuracy and measuring rate . They provide calibrated 2D profile data with up to 7.37 million points per second . A profile frequency of up to 10kHz enables precise profile measurements in dynamic high speed processes . The high resolution sensor matrix offers a resolution of 2,048 points with an ultimate point distance of just 12 µ m , enabling extremely fine details to be detected reliably . The sensors are available with either blue or red laser diodes .
For more information on the scanCONTROL 30x0 series of laser profile scanners from Micro-Epsilon , please visit www . micro-epsilon . co . uk or call the Micro-Epsilon sales department on + 44 ( 0 ) 151 355 6070 or email info @ micro-epsilon . co . uk
