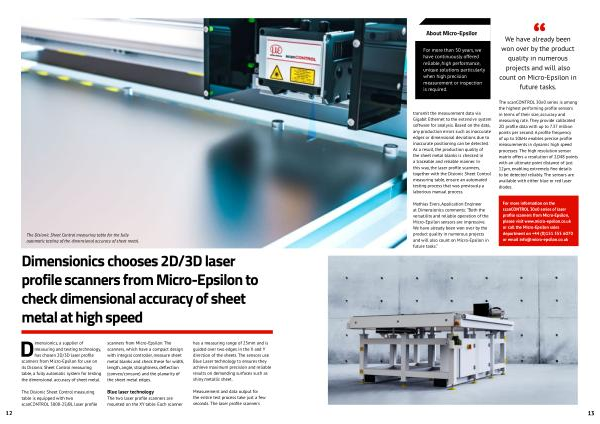

The Disionic Sheet Control measuring table for the fully automatic testing of the dimensional accuracy of sheet metal .

Dimensionics chooses 2D / 3D laser profile scanners from Micro-Epsilon to check dimensional accuracy of sheet metal at high speed

12

Dimensionics , a supplier of measuring and testing technology , has chosen 2D / 3D laser profile scanners from Micro-Epsilon for use on its Disionic Sheet Control measuring table , a fully automatic system for testing the dimensional accuracy of sheet metal .

The Disionic Sheet Control measuring table is equipped with two scanCONTROL 3000-25 / BL laser profile scanners from Micro-Epsilon . The scanners , which have a compact design with integral controller , measure sheet metal blanks and check these for width , length , angle , straightness , deflection ( convex / concave ) and the planarity of the sheet metal edges .
Blue laser technology The two laser profile scanners are mounted on the XY table . Each scanner has a measuring range of 25mm and is guided over two edges in the X and Y direction of the sheets . The sensors use Blue Laser technology to ensures they achieve maximum precision and reliable results on demanding surfaces such as shiny metallic sheet .
Measurement and data output for the entire test process take just a few seconds . The laser profile scanners
