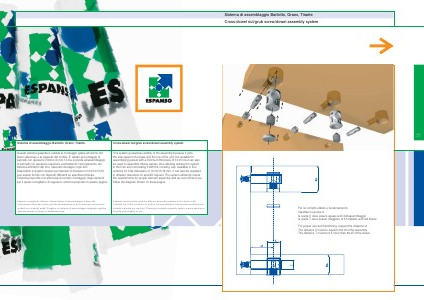

Sistema di assemblaggio Barilotto, Grano, Tirante Cross-dowel nut / grub screw / dowel assembly system
4
2 3
1 5
6
030 031
Per un corretto utilizzo e funzionamento: rispettare la quota x1 la quota V. deve essere uguale al Ø dell’ assemblaggio la quota T. deve essere maggiore di 0.5 rispetto al Ø del tirante
For proper use and functioning: respect the distance x1 The distance V must be equal to the Ø of the assembly. The distance T must be 0.5 more than the Ø of the dowel.
