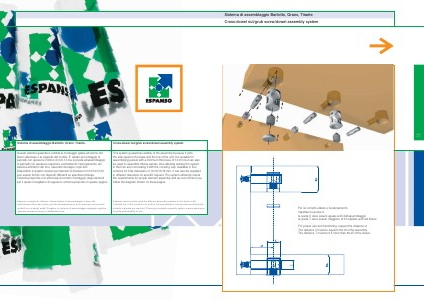

Sistema di assemblaggio Barilotto, Grano, Tirante. Cross-dowel nut / grub screw / dowel assembly system.
Questo sistema garantisce solidità al montaggio grazie all’ unione del fianco alla base e al cappello del mobile. E’ adatto al montaggio di pannelli con spessore minimo di mm. 14 ma si presta all’ assemblaggio di pannelli con spessore superiore, permettendo l’ annegamento del sistema all’ interno del foro, nascosto da tappo copri-foro. Disponibile in quattro versioni per diametri di foratura mm. 10 / 14 / 15 / 16 può essere fornito con diametri differenti su specifica richiesta. Il sistema risponde con efficienza al corretto montaggio degli elementi per il quale consigliamo di seguire lo schema proposto in queste pagine.
This system guarantees solidity of the assembly because it joins the side panel to the base and the top of the unit. It is suitable for assemblying panels with a minimum thickness of 14 mm but can also be used to assemble thicker panels, thus allowing sinking the system in the hole and concealing it with the covering cap. Available in four versions for hole diameters of 10 / 14 / 15 / 16 mm, it can also be supplied in different diameters on specific request. The system efficiently meets the requirements for proper element assembly and we recommend you follow the diagram shown on these pages.
Espanso consiglia di utilizzare i diversi sistemi di assemblaggio in base alla destinazione d’ uso del mobile, per tale specializzazione sono necessari componenti prodotti con materiali adatti. Scegliere un sistema di assemblaggio adeguato significa garantire durata nel tempo e affidabilità d’ uso.
Espanso recommends using the different assembly systems on the basis of the intended use of the furniture unit, and for this specialization components produced with suitable materials are required. Choosing a suitable assembly system means assuring a long life and reliability of use.
