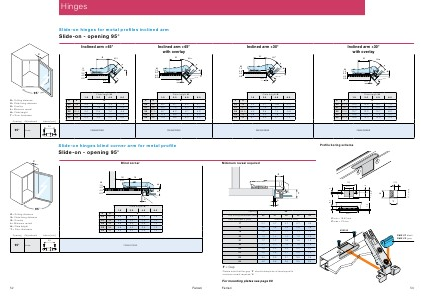

A. Ferrari SpA ENG Anyway Clip and Slide-On Hinges | Page 55

Inclined arm + 30 ° Inclined arm + 30 ° with overlay
X 45
X 45
H 1.5 3.0 4.5 6.0
0.5
L
T
S
H 1.5 3.0 4.5 6.0
0.5
L
T
S
Plate height H
1.5
3.0
4.5
6.0
P
X
S
20
38
2.2
0.7
-0.8
-2.3
21
37
3.1
1.6
0.1
-1.4
22
36.5
4.0
2.5
1.0
-0.5
23
36
4.8
3.3
1.8
0.3
24
35
5.7
4.2
2.7
1.2
Plate height H
1.5
3.0
4.5
6.0
P
X
S
20
32.5
12.0
10.5
9.0
7.5
21
32
12.9
11.4
9.9
8.4
22
31.5
13.7
12.2
10.7
9.2
23
31
14.6
13.1
11.6
10.1
24
30.5
15.5
14.0
12.5
11.0
C95350DZGMG C95350NZGMG
Profile boring scheme
Minimum reveal required
P
4
36 22.7
6
( 10)
L
F
T
8.7
1.3
16.5
P
T
17.1 min
Opening 95 ° Cup drilling distance P [ mm ] 20 21 22 23 24 Door thickness T [ mm ] Minimum reveal L [ mm ] 17 0.7 0.7 0.7 0.7 0.6 18 0.9 0.8 0.9 0.9 0.8 19 1.2 1.1 1.1 1.1 1.0 20 1.4 1.4 1.4 1.3 1.3 21 1.7 1.7 1.6 1.6 1.5 22 2.1 2.0 1.9 1.9 1.9 23 2.5 2.4 2.3 2.2 2.2 24 2.9 2.8 2.7 2.6 2.5 25 3.4 3.3 3.1 3.0 2.9 26 4.2 3.8 3.6 3.5 3.4
F = Gap
Please note that the gap“ F” should always be at least equal to minimum reveal required“ L”
For mounting plates see page 60
48.7
P min = 18.50 mm P max = 22 mm
V233 / G
CM01 / F black CM01 / C grey
