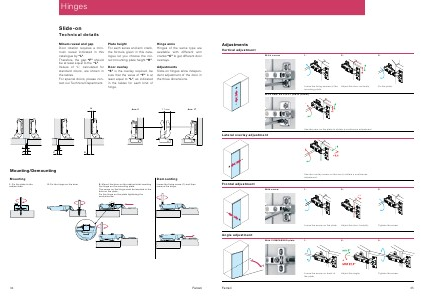

Adjustments
Vertical adjustment
With screw 1. 2. 3.
With cam on PILOT plate( Steel)
Loose the fixing screws of the mounting plate.
Adjust the door vertically. Fix the plate.
+
-
Use the cam on the plate to obtain a continuous adjustment.
Lateral overlay adjustment
+
-
Use the overlay screw on the arm to obtain a continuous adjustment.
Frontal adjustment
With screw 1. 2. 3. + 3
Loose the screw on the plate. Adjust the door frontally. Tighten the screw
Angle adjustment
With COMPASSSO plate 1. 2. 3.
-
Loose the screw on back of the plate.
Adjust the angle. Tighten the screw.
