Hinges
Slide-on

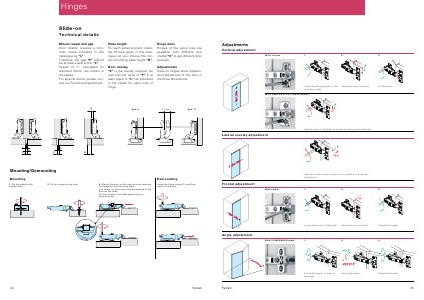

Technical details
Minum reveal and gap Door rotation requires a minimum reveal indicated in this catalogue by“ L”. Therefore, the gap“ F” should be at least equal to the“ L”. Values of“ L”, calculated for standard doors, are shown in the tables. For special doors, please contact our Technical Department.
Plate height For each series and arm crank, the formula given in this catalogue let you choose the correct mounting plate height“ H”.
Door overlay“ S” is the overlay required, be sure that the value of“ F” is at least equal to“ L”, as indicated in the tables for each kind of hinge.
Hinge arms Hinges of the same type are available with different arm cranks“ C” to get different door overlays.
Adjustments Slide-on hinges allow independent adjustment of the door in the three dimensions.
H Arm 0 17 mm
Arm 17
Mounting / Demounting
Mounting
1. Fix the plate to the cabinet side
2. Fix the hinge on the door 3. Mount the door on the cabinet side inserting the hinge on the mounting plate. The screw on the hinge must be inserted in the hole on the plate. Fix the hinge on the plate tightening the central screw.
Demounting
Loose the fixing screw( 1) and then remove the hinge.
