Play
| 208
Dimensions
C
D
F
E
B
J
G
A
Model
A
B
C
D
E
F
G
J
51 2/
47 1/
24
8
35
33 5/
36
25 3/
5
5
8
4
Dimensional information is in inches.
* Electrical box can easily be relocated to the field to either the front or the back of the cabinet, depending on port direction installer chooses.

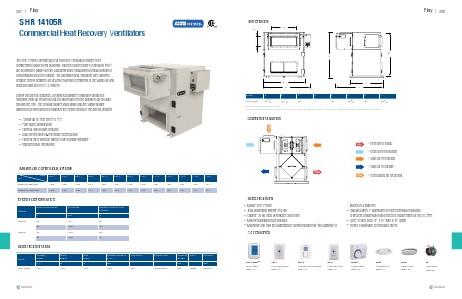

SHR 14105R
Operation diagram
= fresh air to inside
= fresh air from outside
= stale air from inside
= stale air to outside
= recirculated air for defrost
Specifications
•
•
•
•
•
Model: SHR 14105R
Total assembled weight: 255 lbs
Cabinet: 20 ga. steel w/powder coat finish
Motors: backward curved blades
Mounting: unit may be suspended by using threaded rod (not supplied) or
•
•
•
placed on a platform
Insulated with 1” aluminum foil-face fiberglass insulation
to prevent condensation and meet the requirements of the UL 94HF.
Core: 3 cores each 12” x 12” with a 15” depth
Filters: 6 washable electrostatic filters
Accessories
Eco-TouchTM
Wall Control
page 199
EDF 1
Electronic Control
page 199
EDF 7
Electronic Dehumidistat
page 199
RTS 3
Electronic Timer
page 199
MDEH
Dehumidistat
page 199
MGE
Exhaust Grille
page 197
MGS
Supply Grille
page 196
IR
Iris Damper
page 200
fantech
