7-3. Do-it-yourself maintenance
539

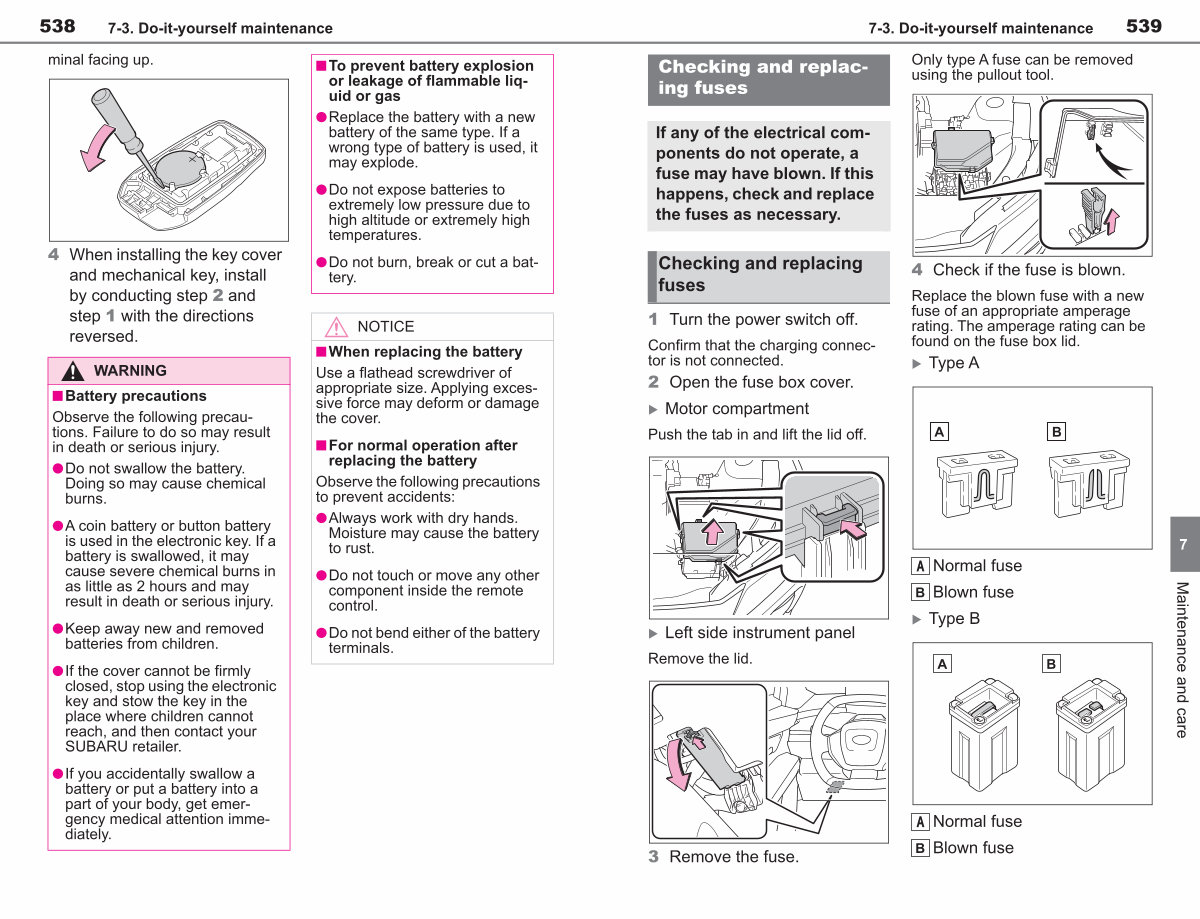

Checking and replacing fuses
Only type A fuse can be removed using the pullout tool.
If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary.
Checking and replacing fuses
1 Turn the power switch off.
Confirm that the charging connector is not connected.
2 Open the fuse box cover.
� Motor compartment Push the tab in and lift the lid off.
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage
rating. The amperage rating can be found on the fuse box lid.
� Type A
� Left side instrument panel Remove the lid.
A Normal fuse Blown fuse
� Type B
7
Maintenance and care
3 Remove the fuse.
A Normal fuse Blown fuse
