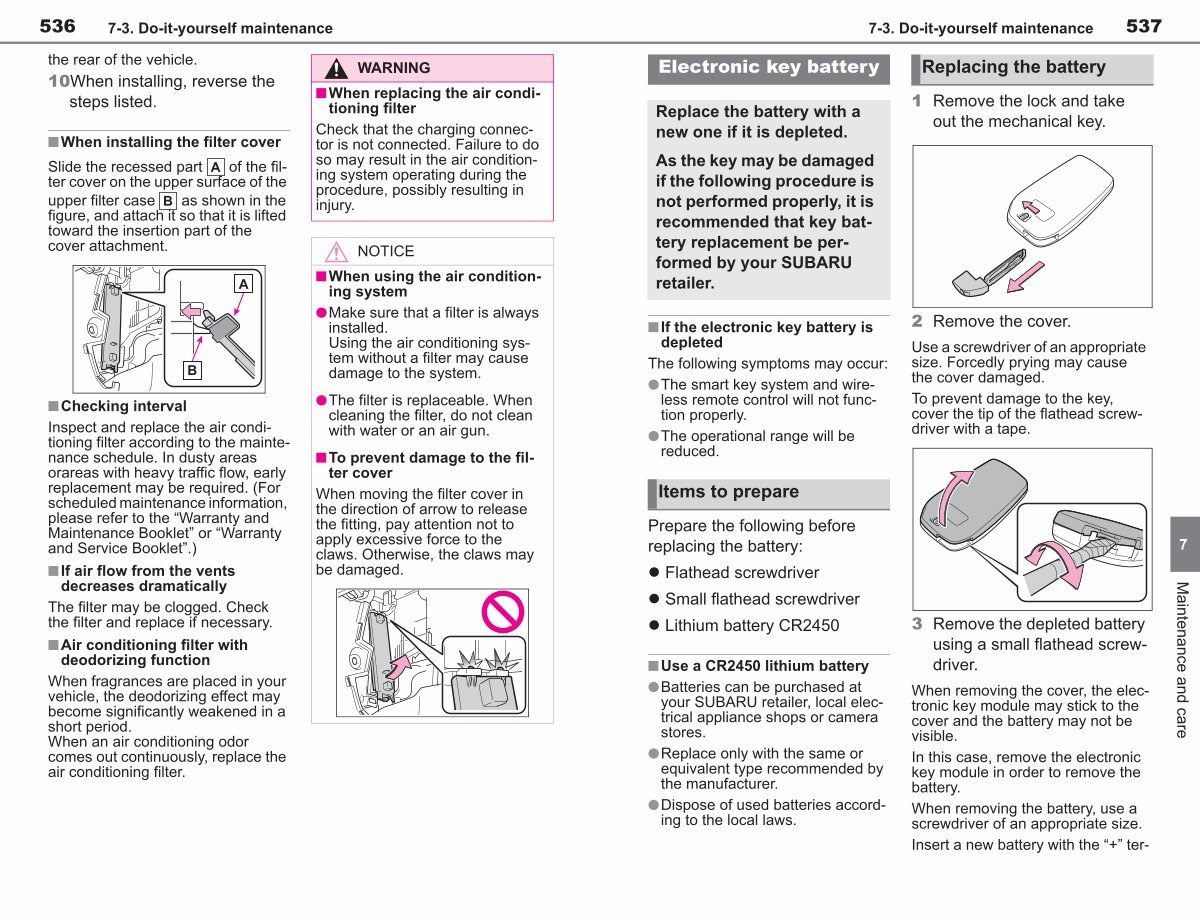

536 7-3. Do-it-yourself maintenance
the rear of the vehicle.
10When installing, reverse the steps listed.
n When installing the filter cover Slide the recessed part of the filter cover on the upper surface of the
upper filter case as shown in the figure, and attach it so that it is lifted
toward the insertion part of the cover attachment.
n Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas orareas with heavy traffic flow, early replacement may be required.( For scheduled maintenance information, please refer to the“ Warranty and Maintenance Booklet” or“ Warranty and Service Booklet”.)
n If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
n Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may
become significantly weakened in a short period. When an air conditioning odor comes out continuously, replace the air conditioning filter.
WARNING
n When replacing the air conditioning filter
Check that the charging connector is not connected. Failure to do so may result in the air conditioning system operating during the
procedure, possibly resulting in injury.
NOTICE
n When using the air conditioning system
lMake sure that a filter is always
installed. Using the air conditioning system without a filter may cause damage to the system.
lThe filter is replaceable. When cleaning the filter, do not clean
with water or an air gun.
n To prevent damage to the filter cover
When moving the filter cover in the direction of arrow to release
the fitting, pay attention not to apply excessive force to the
claws. Otherwise, the claws may be damaged.
