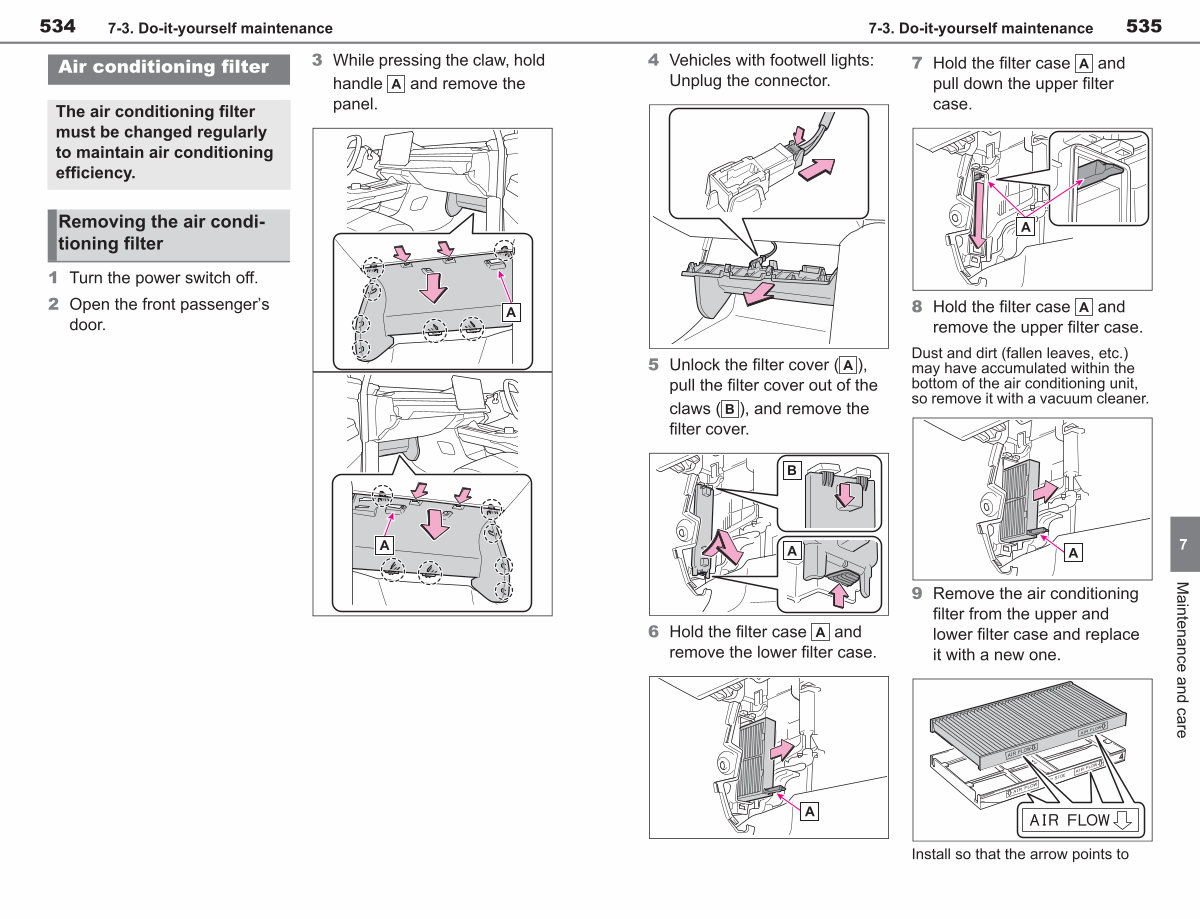

7-3. Do-it-yourself maintenance
535
4 Vehicles with footwell lights: Unplug the connector.
7 Hold the filter case and pull down the upper filter case.
5 Unlock the filter cover(), pull the filter cover out of the claws(), and remove the filter cover.
8 Hold the filter case and remove the upper filter case.
Dust and dirt( fallen leaves, etc.) may have accumulated within the
bottom of the air conditioning unit, so remove it with a vacuum cleaner.
7
6 Hold the filter case and remove the lower filter case.
9 Remove the air conditioning filter from the upper and lower filter case and replace it with a new one.
Maintenance and care
Install so that the arrow points to
