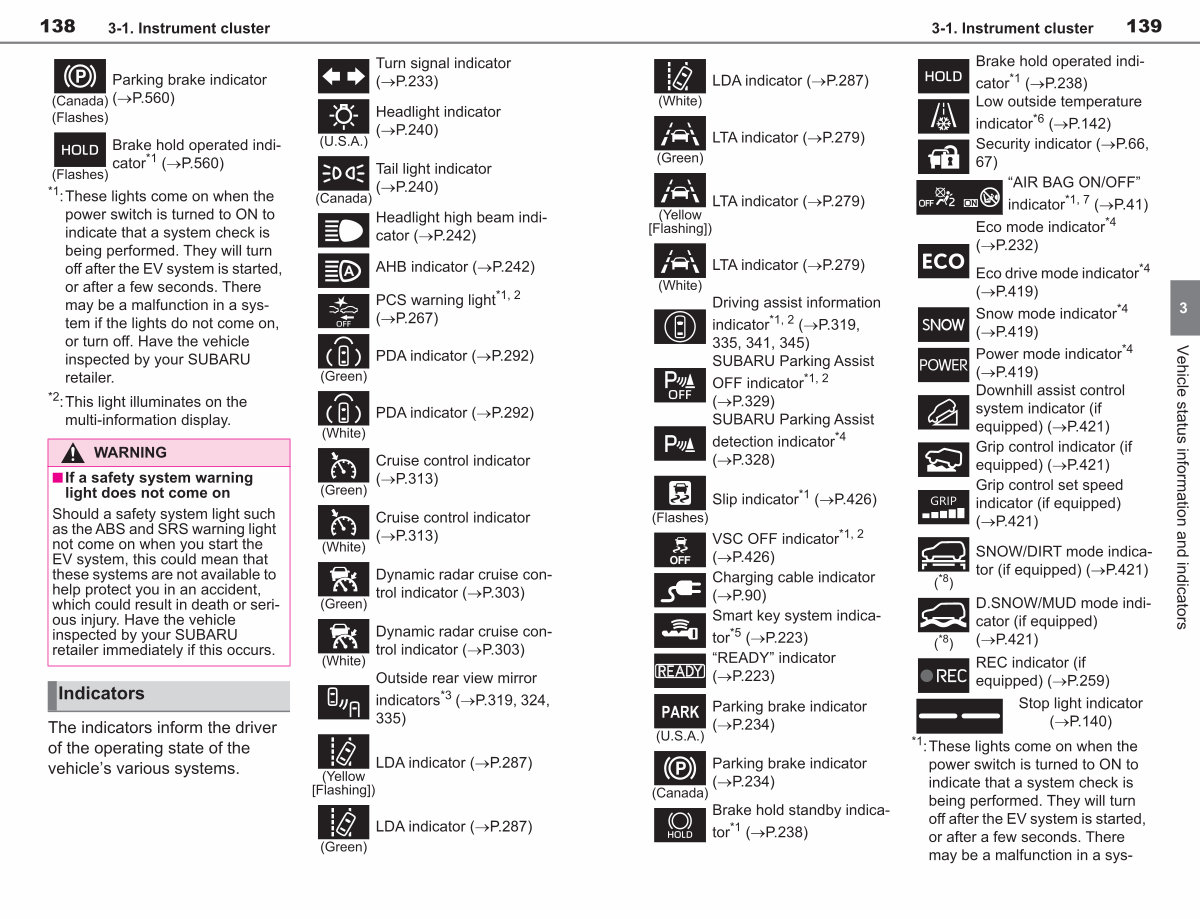

138 3-1. Instrument cluster
Parking brake indicator
( Canada)( �P. 560)( Flashes)
Brake hold operated indicator * 1( �P. 560)( Flashes) * 1: These lights come on when the
power switch is turned to ON to indicate that a system check is being performed. They will turn off after the EV system is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU retailer.
* 2: This light illuminates on the
multi-information display.
WARNING
n If a safety system warning light does not come on
Should a safety system light such
as the ABS and SRS warning light not come on when you start the
EV system, this could mean that
these systems are not available to help protect you in an accident,
which could result in death or serious injury. Have the vehicle inspected by your SUBARU
retailer immediately if this occurs.
Indicators
The indicators inform the driver of the operating state of the vehicle’ s various systems.
( U. S. A.)
Turn signal indicator( �P. 233)
Headlight indicator( �P. 240)
Tail light indicator( �P. 240)
( Canada) Headlight high beam indicator( �P. 242)
( Green)
( White)
( Green)
( White)
( Green)
( White)
AHB indicator( �P. 242)
PCS warning light * 1, 2( �P. 267)
PDA indicator( �P. 292)
PDA indicator( �P. 292)
Cruise control indicator( �P. 313)
Cruise control indicator( �P. 313)
Dynamic radar cruise control indicator( �P. 303)
Dynamic radar cruise control indicator( �P. 303)
Outside rear view mirror
indicators * 3( �P. 319, 324, 335)
LDA indicator( �P. 287)
( Yellow [ Flashing ])
LDA indicator( �P. 287)
( Green)
