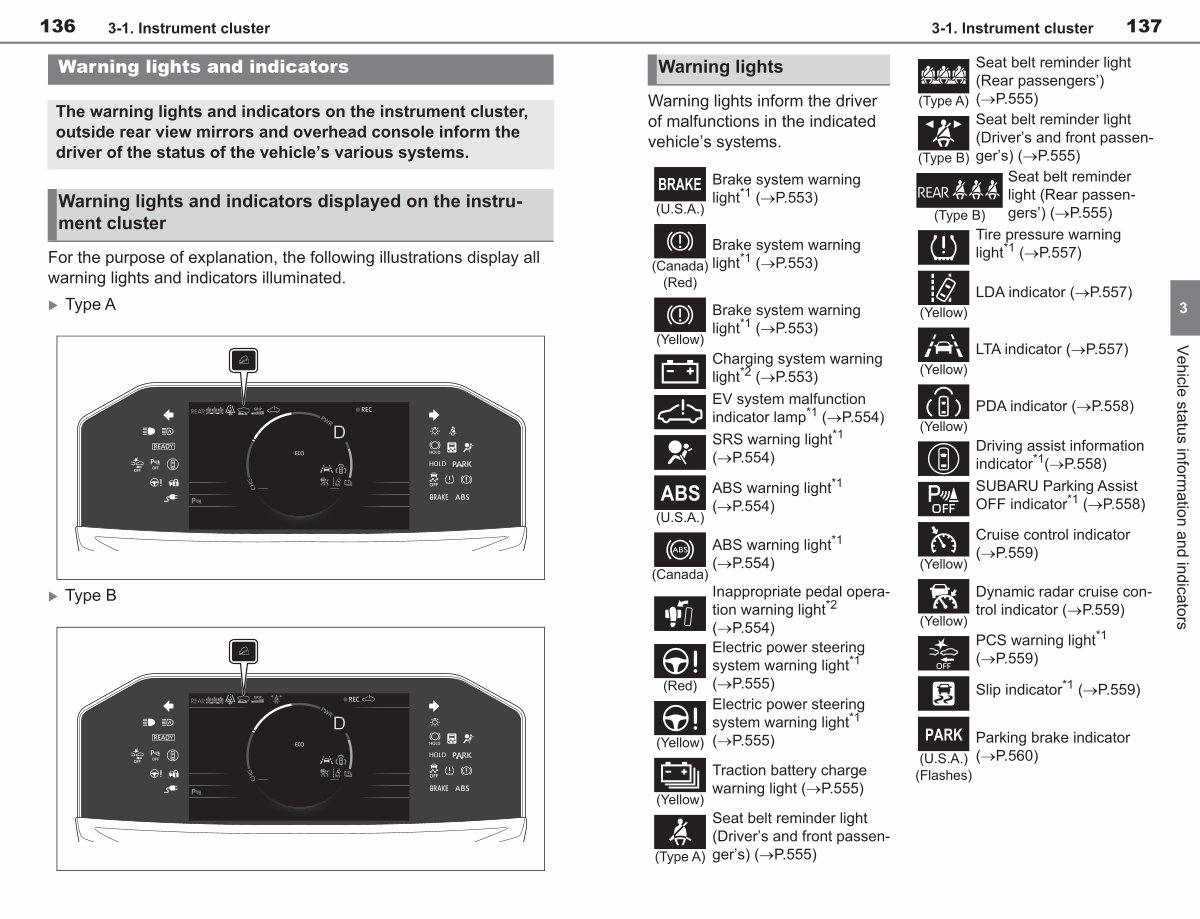

3-1. Instrument cluster
137
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’ s systems.
( U. S. A.)
( Canada)( Red)
( Yellow)
( U. S. A.)
( Canada)
( Red)
( Yellow)
( Yellow)
( Type A)
Brake system warning light * 1( �P. 553)
Brake system warning light * 1( �P. 553)
Brake system warning light * 1( �P. 553)
Charging system warning light * 2( �P. 553)
EV system malfunction indicator lamp * 1( �P. 554)
SRS warning light * 1( �P. 554)
ABS warning light * 1( �P. 554)
ABS warning light * 1( �P. 554)
Inappropriate pedal operation warning light * 2( �P. 554) Electric power steering system warning light * 1( �P. 555) Electric power steering system warning light * 1( �P. 555)
Traction battery charge warning light( �P. 555)
Seat belt reminder light( Driver’ s and front passenger’ s)( �P. 555)
Seat belt reminder light( Rear passengers’)
( Type A)( �P. 555) Seat belt reminder light( Driver’ s and front passenger’ s)( �P. 555)
( Type B) Seat belt reminder light( Rear passengers’)( �P. 555)
( Type B) Tire pressure warning light * 1( �P. 557)
( Yellow)
( Yellow)
( Yellow)
( Yellow)
( Yellow)
LDA indicator( �P. 557)
LTA indicator( �P. 557)
PDA indicator( �P. 558)
Driving assist information indicator * 1( �P. 558)
SUBARU Parking Assist OFF indicator * 1( �P. 558)
Cruise control indicator( �P. 559)
Dynamic radar cruise control indicator( �P. 559)
PCS warning light * 1( �P. 559)
Slip indicator * 1( �P. 559)
Parking brake indicator
( U. S. A.)( �P. 560)( Flashes)
3
Vehicle status information and indicators
