8-2. Steps to take in an emergency
623

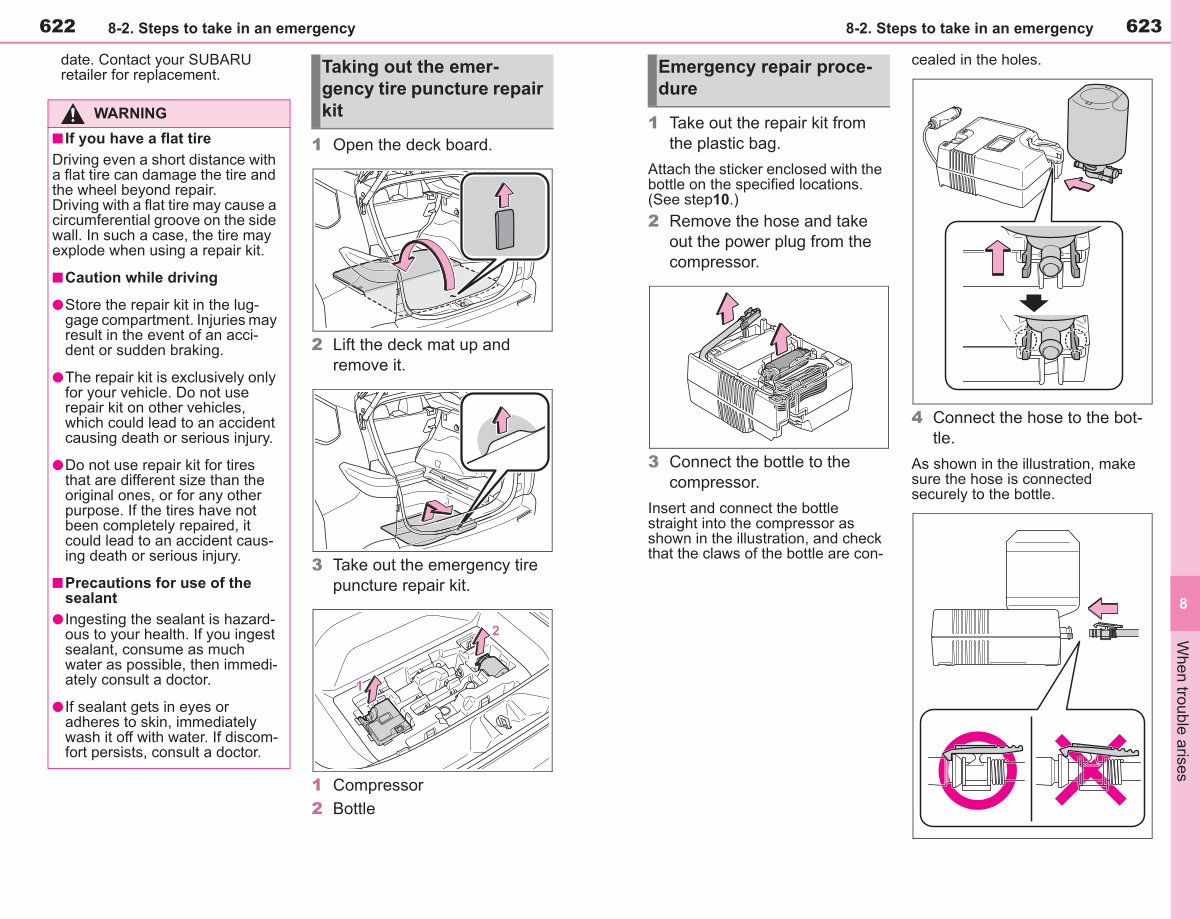

Emergency repair procedure
3 Connect the bottle to the compressor.
Insert and connect the bottle straight into the compressor as shown in the illustration, and check that the claws of the bottle are concealed in the holes.
1 Take out the repair kit from the plastic bag.
Attach the sticker enclosed with the bottle on the specified locations.( See step10.)
2 Remove the hose and take out the power plug from the compressor.
4 Connect the hose to the bottle.
As shown in the illustration, make sure the hose is connected securely to the bottle.
8
When trouble arises
