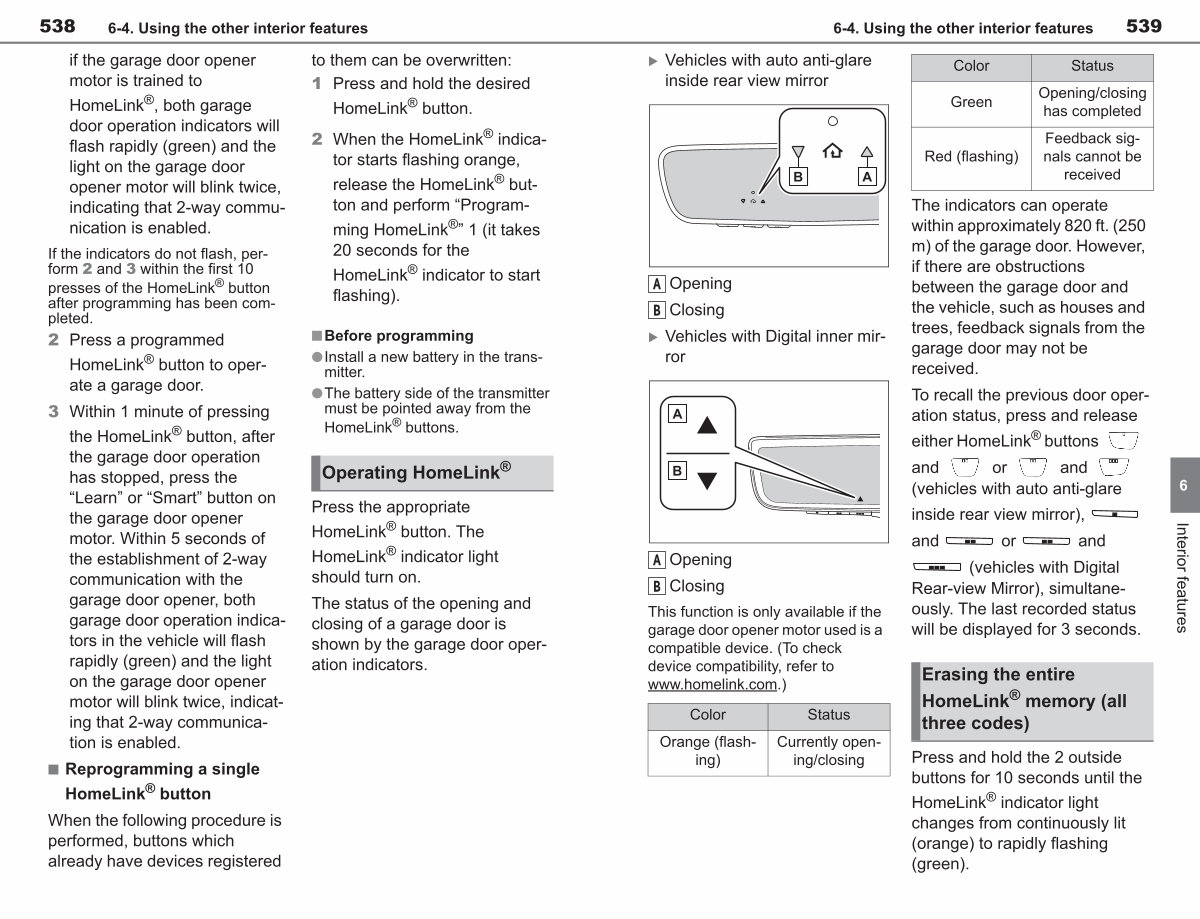

6-4. Using the other interior features
539
� Vehicles with auto anti-glare inside rear view mirror
Color Green
Red( flashing)
Status
Opening / closing has completed
Feedback signals cannot be received
A Opening
B Closing
� Vehicles with Digital inner mirror
A Opening
B Closing
This function is only available if the garage door opener motor used is a compatible device.( To check device compatibility, refer to www. homelink. com.)
Color
Orange( flashing)
Status
Currently opening / closing
The indicators can operate within approximately 820 ft.( 250 m) of the garage door. However, if there are obstructions between the garage door and the vehicle, such as houses and trees, feedback signals from the garage door may not be received.
To recall the previous door operation status, press and release
either HomeLink ® buttons
and or and( vehicles with auto anti-glare inside rear view mirror), and or and
( vehicles with Digital Rear-view Mirror), simultaneously. The last recorded status will be displayed for 3 seconds.
Erasing the entire
HomeLink ® memory( all three codes)
Press and hold the 2 outside buttons for 10 seconds until the
HomeLink ® indicator light changes from continuously lit( orange) to rapidly flashing( green).
6
Interior features
