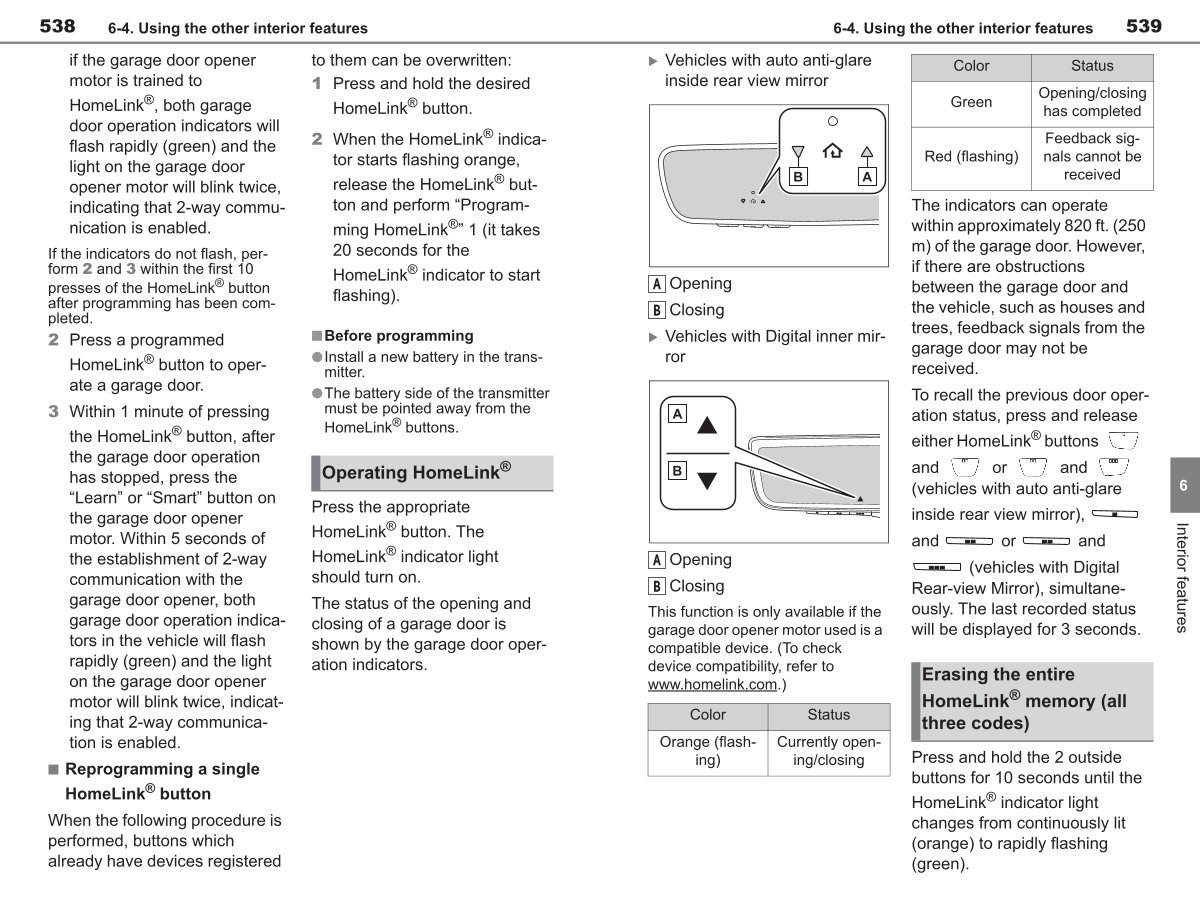

538 6-4. Using the other interior features
if the garage door opener motor is trained to
HomeLink ®, both garage door operation indicators will flash rapidly( green) and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.
If the indicators do not flash, perform 2 and 3 within the first 10
presses of the HomeLink ® button after programming has been completed.
2 Press a programmed
HomeLink ® button to operate a garage door.
3 Within 1 minute of pressing
the HomeLink ® button, after the garage door operation has stopped, press the“ Learn” or“ Smart” button on the garage door opener motor. Within 5 seconds of the establishment of 2-way communication with the garage door opener, both garage door operation indicators in the vehicle will flash rapidly( green) and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.
n Reprogramming a single HomeLink ® button
When the following procedure is performed, buttons which already have devices registered to them can be overwritten: 1 Press and hold the desired
HomeLink ® button.
2 When the HomeLink ® indicator starts flashing orange,
release the HomeLink ® button and perform“ Programming HomeLink ®” 1( it takes 20 seconds for the
HomeLink ® indicator to start flashing).
nBefore programming
lInstall a new battery in the transmitter.
lThe battery side of the transmitter must be pointed away from the
HomeLink ® buttons.
Operating HomeLink ®
Press the appropriate HomeLink ® button. The
HomeLink ® indicator light should turn on.
The status of the opening and closing of a garage door is shown by the garage door operation indicators.
