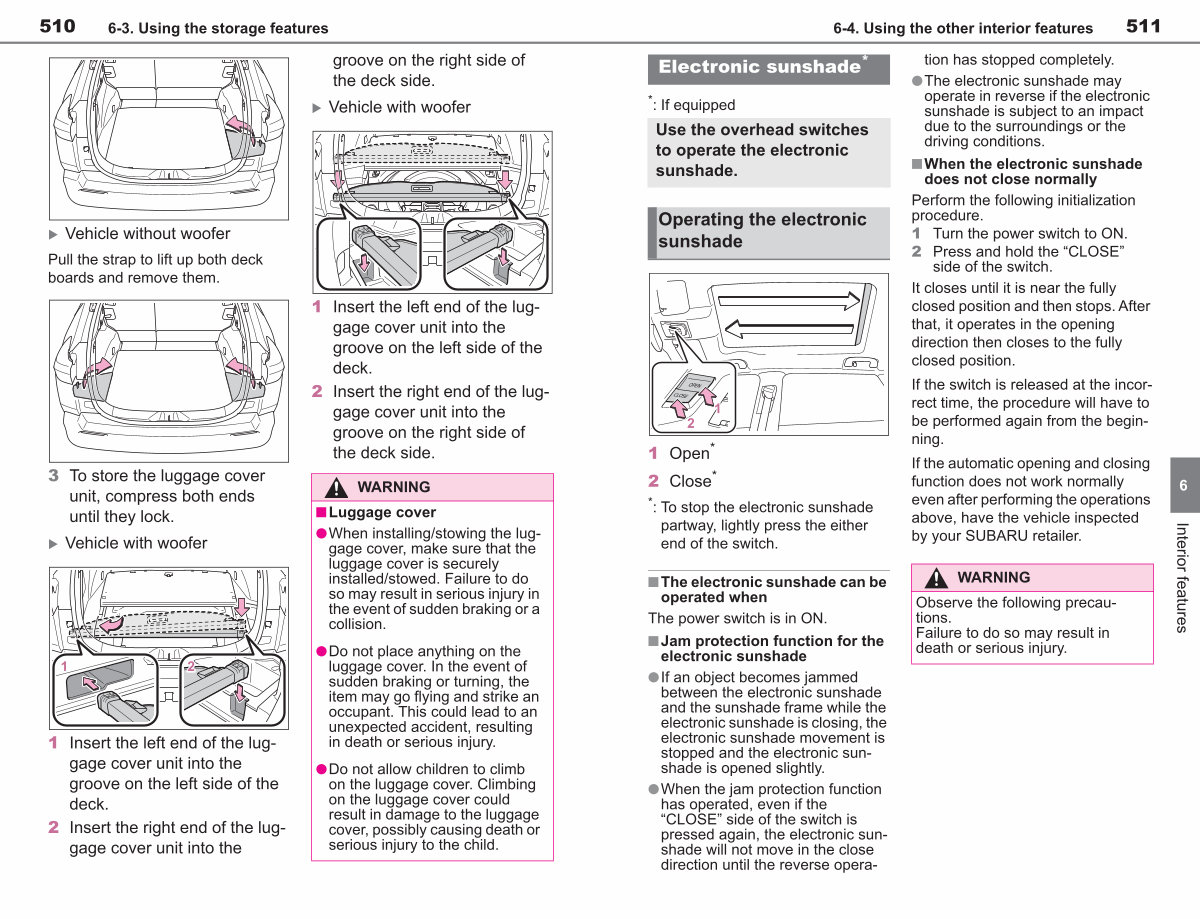

510 6-3. Using the storage features groove on the right side of the deck side.
� Vehicle with woofer
� Vehicle without woofer
Pull the strap to lift up both deck boards and remove them.
3 To store the luggage cover unit, compress both ends until they lock.
� Vehicle with woofer
1 Insert the left end of the luggage cover unit into the groove on the left side of the deck.
2 Insert the right end of the luggage cover unit into the
1 Insert the left end of the luggage cover unit into the groove on the left side of the deck.
2 Insert the right end of the luggage cover unit into the groove on the right side of the deck side.
WARNING n Luggage cover
lWhen installing / stowing the luggage cover, make sure that the luggage cover is securely installed / stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
lDo not place anything on the luggage cover. In the event of sudden braking or turning, the item may go flying and strike an
occupant. This could lead to an unexpected accident, resulting in death or serious injury.
lDo not allow children to climb on the luggage cover. Climbing on the luggage cover could result in damage to the luggage
cover, possibly causing death or serious injury to the child.
