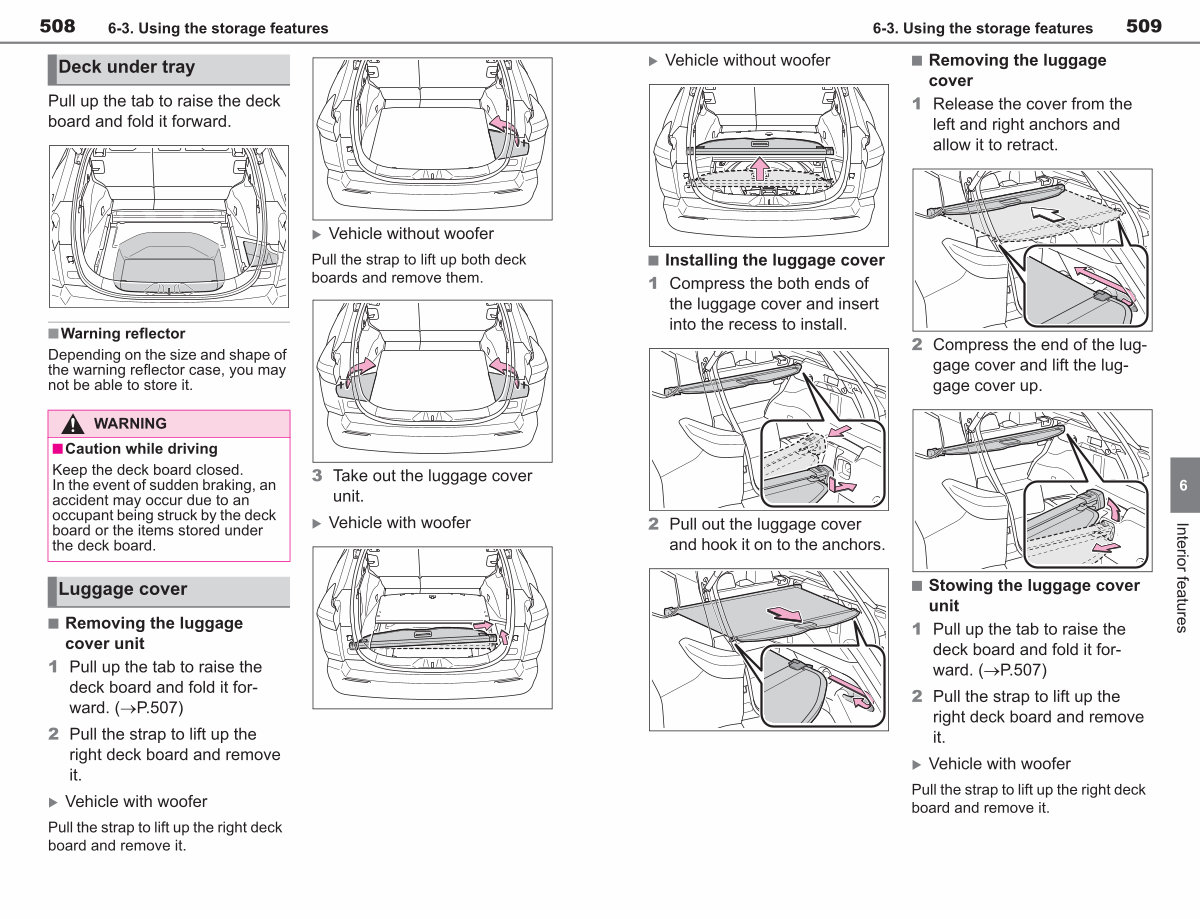

6-3. Using the storage features
509
� Vehicle without woofer n Removing the luggage cover
1 Release the cover from the left and right anchors and allow it to retract. n Installing the luggage cover
1 Compress the both ends of the luggage cover and insert into the recess to install.
2 Compress the end of the luggage cover and lift the luggage cover up.
6
2 Pull out the luggage cover and hook it on to the anchors. n Stowing the luggage cover unit
1 Pull up the tab to raise the deck board and fold it forward.( �P. 507)
2 Pull the strap to lift up the right deck board and remove it.
� Vehicle with woofer
Pull the strap to lift up the right deck board and remove it.
Interior features
