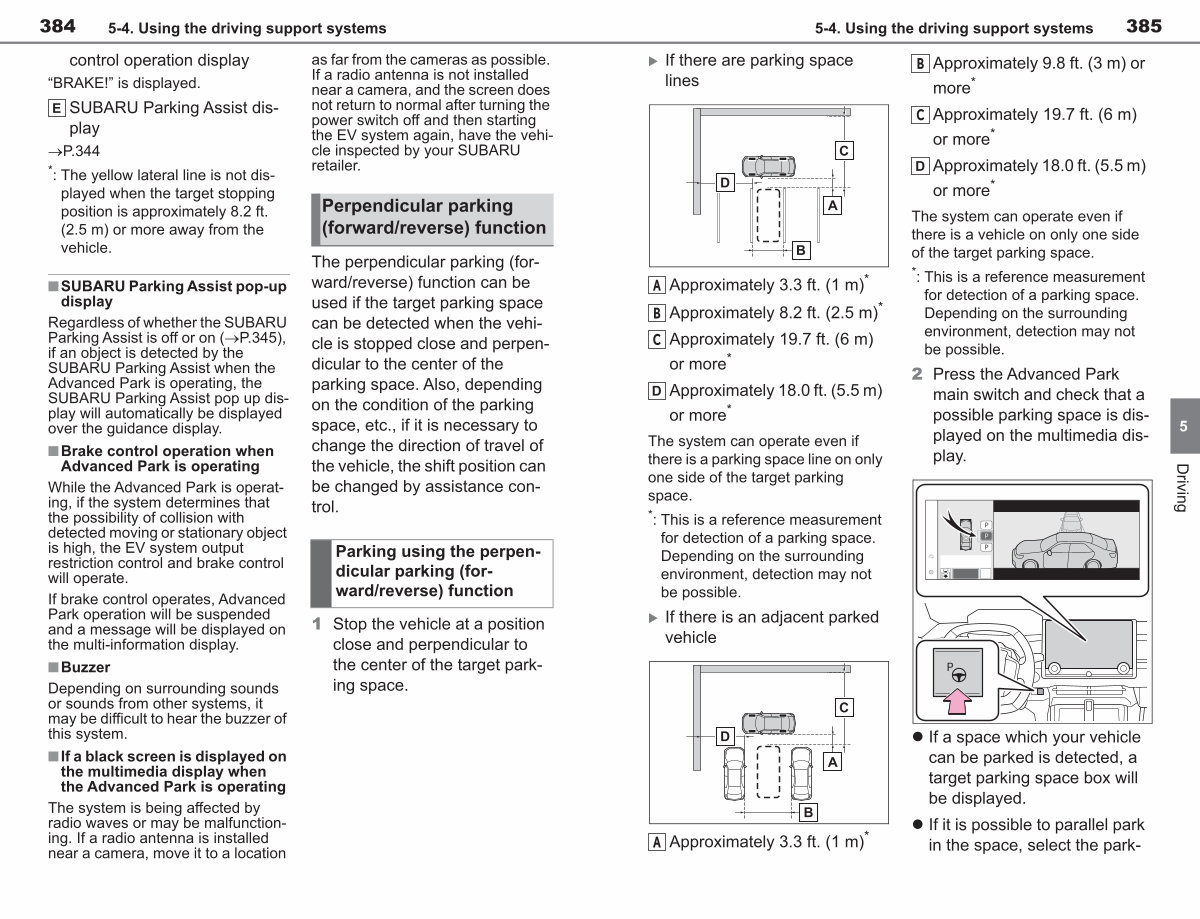

384 5-4. Using the driving support systems
control operation display“ BRAKE!” is displayed.
SUBARU Parking Assist display
�P. 344 *: The yellow lateral line is not displayed when the target stopping position is approximately 8.2 ft.( 2.5 m) or more away from the vehicle.
n SUBARU Parking Assist pop-up display
Regardless of whether the SUBARU Parking Assist is off or on( �P. 345), if an object is detected by the SUBARU Parking Assist when the Advanced Park is operating, the SUBARU Parking Assist pop up display will automatically be displayed over the guidance display.
n Brake control operation when Advanced Park is operating
While the Advanced Park is operating, if the system determines that the possibility of collision with detected moving or stationary object is high, the EV system output restriction control and brake control will operate.
If brake control operates, Advanced Park operation will be suspended
and a message will be displayed on the multi-information display.
n Buzzer
Depending on surrounding sounds
or sounds from other systems, it may be difficult to hear the buzzer of
this system.
n If a black screen is displayed on the multimedia display when the Advanced Park is operating
The system is being affected by radio waves or may be malfunctioning. If a radio antenna is installed near a camera, move it to a location as far from the cameras as possible. If a radio antenna is not installed near a camera, and the screen does not return to normal after turning the power switch off and then starting the EV system again, have the vehicle inspected by your SUBARU retailer.
Perpendicular parking( forward / reverse) function
The perpendicular parking( forward / reverse) function can be used if the target parking space can be detected when the vehicle is stopped close and perpendicular to the center of the parking space. Also, depending on the condition of the parking space, etc., if it is necessary to change the direction of travel of the vehicle, the shift position can be changed by assistance control.
Parking using the perpendicular parking( forward / reverse) function
1 Stop the vehicle at a position close and perpendicular to the center of the target parking space.
