5-4. Using the driving support systems
383

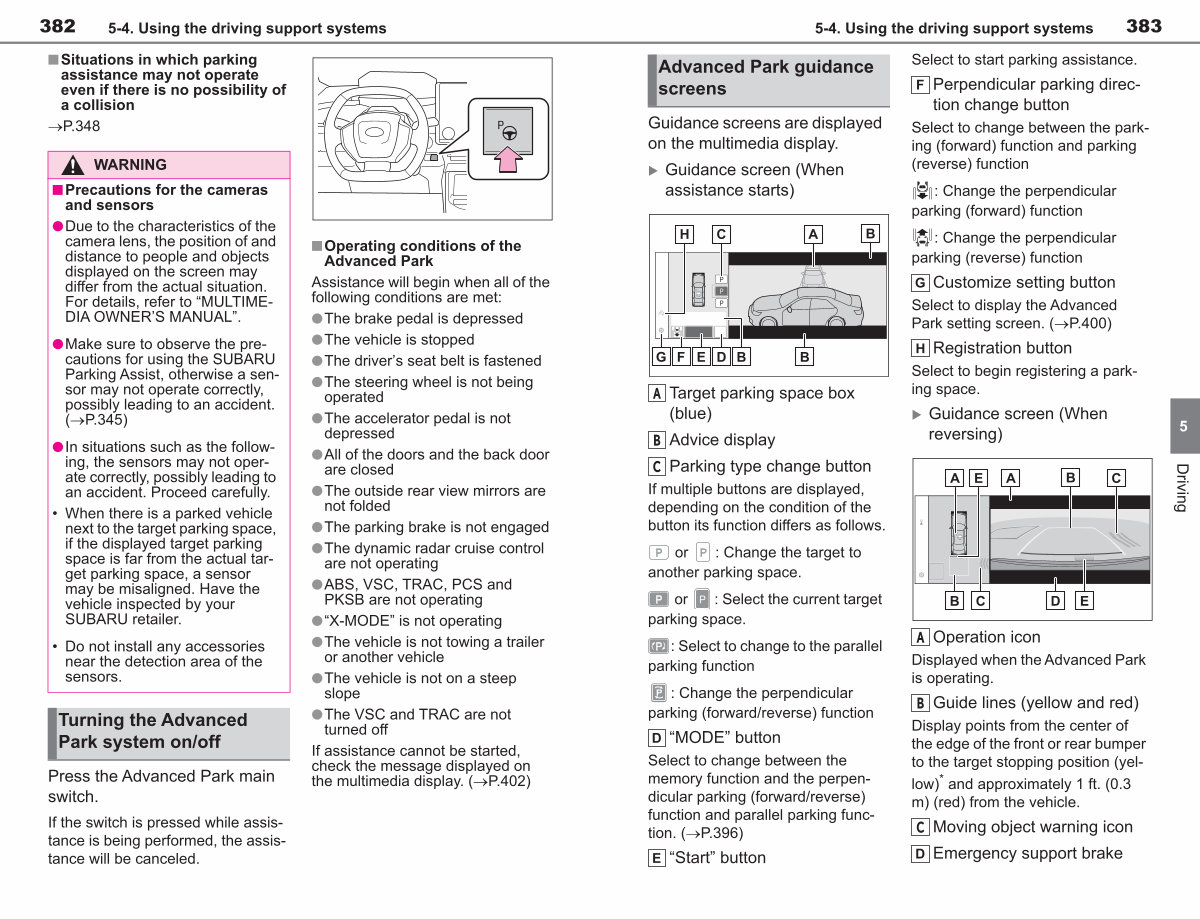

Advanced Park guidance screens
Guidance screens are displayed on the multimedia display.
� Guidance screen( When assistance starts)
A Target parking space box( blue)
B Advice display
C Parking type change button
If multiple buttons are displayed, depending on the condition of the button its function differs as follows.
or: Change the target to another parking space.
or: Select the current target parking space.
: Select to change to the parallel parking function
: Change the perpendicular parking( forward / reverse) function
“ MODE” button
Select to change between the memory function and the perpendicular parking( forward / reverse) function and parallel parking function.( �P. 396)
“ Start” button
Select to start parking assistance.
Perpendicular parking direction change button
Select to change between the parking( forward) function and parking( reverse) function
: Change the perpendicular parking( forward) function
: Change the perpendicular parking( reverse) function
Customize setting button
Select to display the Advanced Park setting screen.( �P. 400)
Registration button
Select to begin registering a parking space.
� Guidance screen( When reversing)
A
Operation icon
Displayed when the Advanced Park is operating.
B Guide lines( yellow and red)
Display points from the center of the edge of the front or rear bumper to the target stopping position( yellow) * and approximately 1 ft.( 0.3 m)( red) from the vehicle.
C Moving object warning icon Emergency support brake
5
Driving
