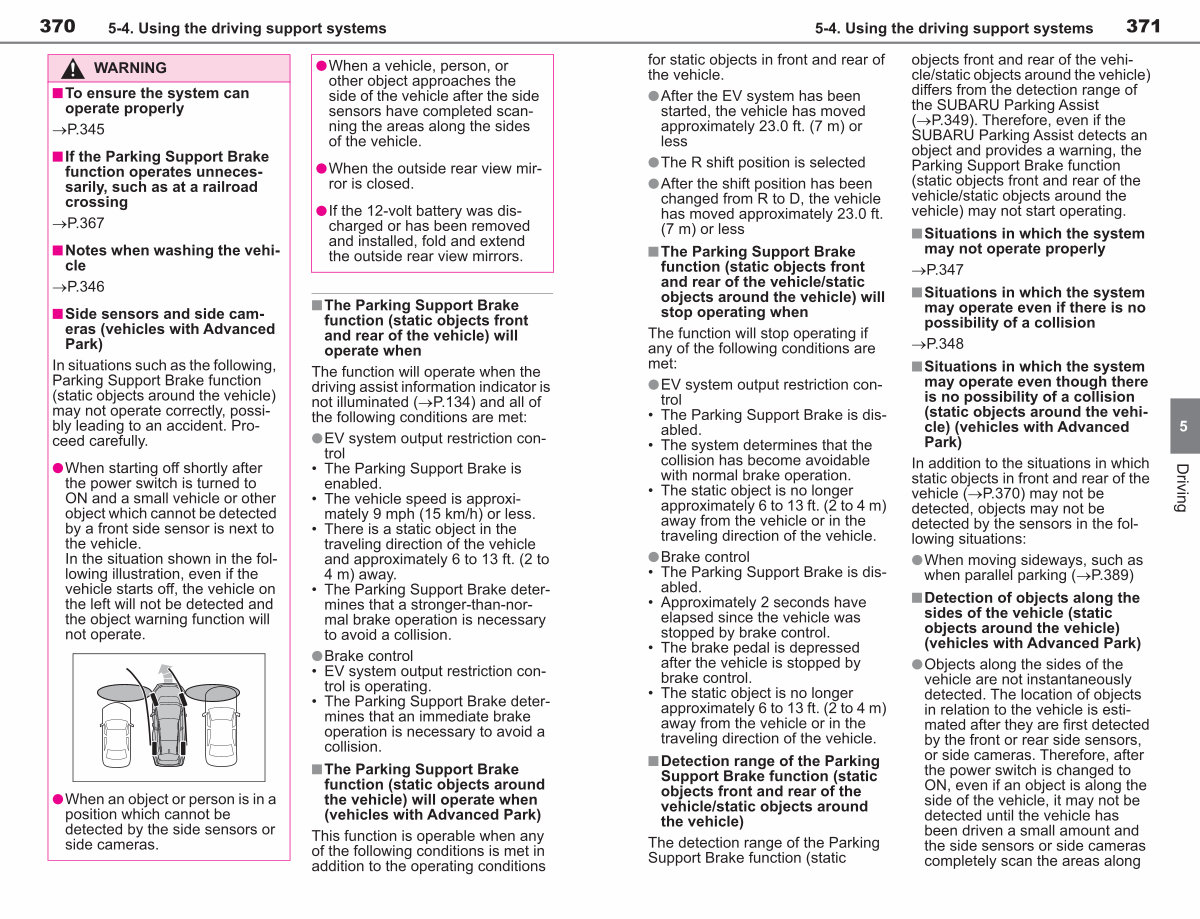

370 5-4. Using the driving support systems
WARNING
n To ensure the system can operate properly
�P. 345
n If the Parking Support Brake function operates unnecessarily, such as at a railroad crossing
�P. 367
n Notes when washing the vehicle
�P. 346
n Side sensors and side cameras( vehicles with Advanced Park)
In situations such as the following, Parking Support Brake function( static objects around the vehicle) may not operate correctly, possibly leading to an accident. Proceed carefully.
lWhen starting off shortly after the power switch is turned to ON and a small vehicle or other object which cannot be detected by a front side sensor is next to the vehicle.
In the situation shown in the following illustration, even if the vehicle starts off, the vehicle on
the left will not be detected and the object warning function will not operate.
lWhen an object or person is in a position which cannot be detected by the side sensors or side cameras. lWhen a vehicle, person, or other object approaches the side of the vehicle after the side sensors have completed scanning the areas along the sides of the vehicle.
lWhen the outside rear view mirror is closed.
lIf the 12-volt battery was discharged or has been removed
and installed, fold and extend the outside rear view mirrors.
nThe Parking Support Brake function( static objects front
and rear of the vehicle) will operate when
The function will operate when the driving assist information indicator is not illuminated( �P. 134) and all of the following conditions are met:
lEV system output restriction control
• The Parking Support Brake is
enabled.
• The vehicle speed is approximately 9 mph( 15 km / h) or less.
• There is a static object in the traveling direction of the vehicle and approximately 6 to 13 ft.( 2 to
4 m) away.
• The Parking Support Brake determines that a stronger-than-normal brake operation is necessary
to avoid a collision.
lBrake control
• EV system output restriction control is operating.
• The Parking Support Brake determines that an immediate brake operation is necessary to avoid a collision.
nThe Parking Support Brake function( static objects around the vehicle) will operate when( vehicles with Advanced Park)
This function is operable when any of the following conditions is met in
addition to the operating conditions
