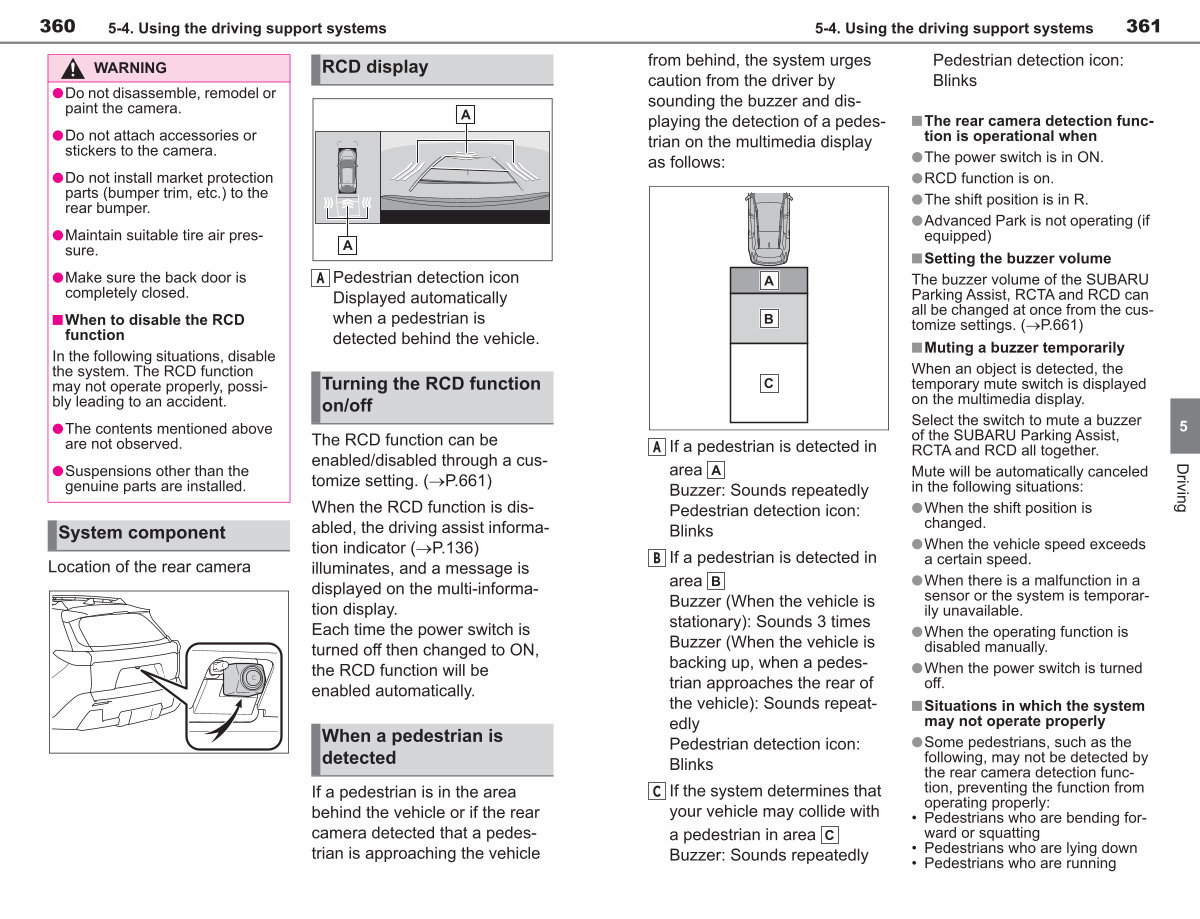

5-4. Using the driving support systems
361 from behind, the system urges caution from the driver by sounding the buzzer and displaying the detection of a pedestrian on the multimedia display as follows:
A If a pedestrian is detected in area Buzzer: Sounds repeatedly Pedestrian detection icon: Blinks
B If a pedestrian is detected in area Buzzer( When the vehicle is stationary): Sounds 3 times Buzzer( When the vehicle is backing up, when a pedestrian approaches the rear of the vehicle): Sounds repeatedly Pedestrian detection icon: Blinks
C If the system determines that your vehicle may collide with a pedestrian in area Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks
nThe rear camera detection function is operational when
lThe power switch is in ON. lRCD function is on. lThe shift position is in R.
lAdvanced Park is not operating( if equipped)
n Setting the buzzer volume
The buzzer volume of the SUBARU
Parking Assist, RCTA and RCD can all be changed at once from the customize settings.( �P. 661)
nMuting a buzzer temporarily
When an object is detected, the temporary mute switch is displayed on the multimedia display.
Select the switch to mute a buzzer of the SUBARU Parking Assist, RCTA and RCD all together.
Mute will be automatically canceled in the following situations:
lWhen the shift position is changed.
lWhen the vehicle speed exceeds a certain speed.
lWhen there is a malfunction in a
sensor or the system is temporarily unavailable.
lWhen the operating function is disabled manually.
lWhen the power switch is turned off.
nSituations in which the system may not operate properly
lSome pedestrians, such as the following, may not be detected by the rear camera detection function, preventing the function from operating properly:
• Pedestrians who are bending forward or squatting
• Pedestrians who are lying down
• Pedestrians who are running
5
Driving
