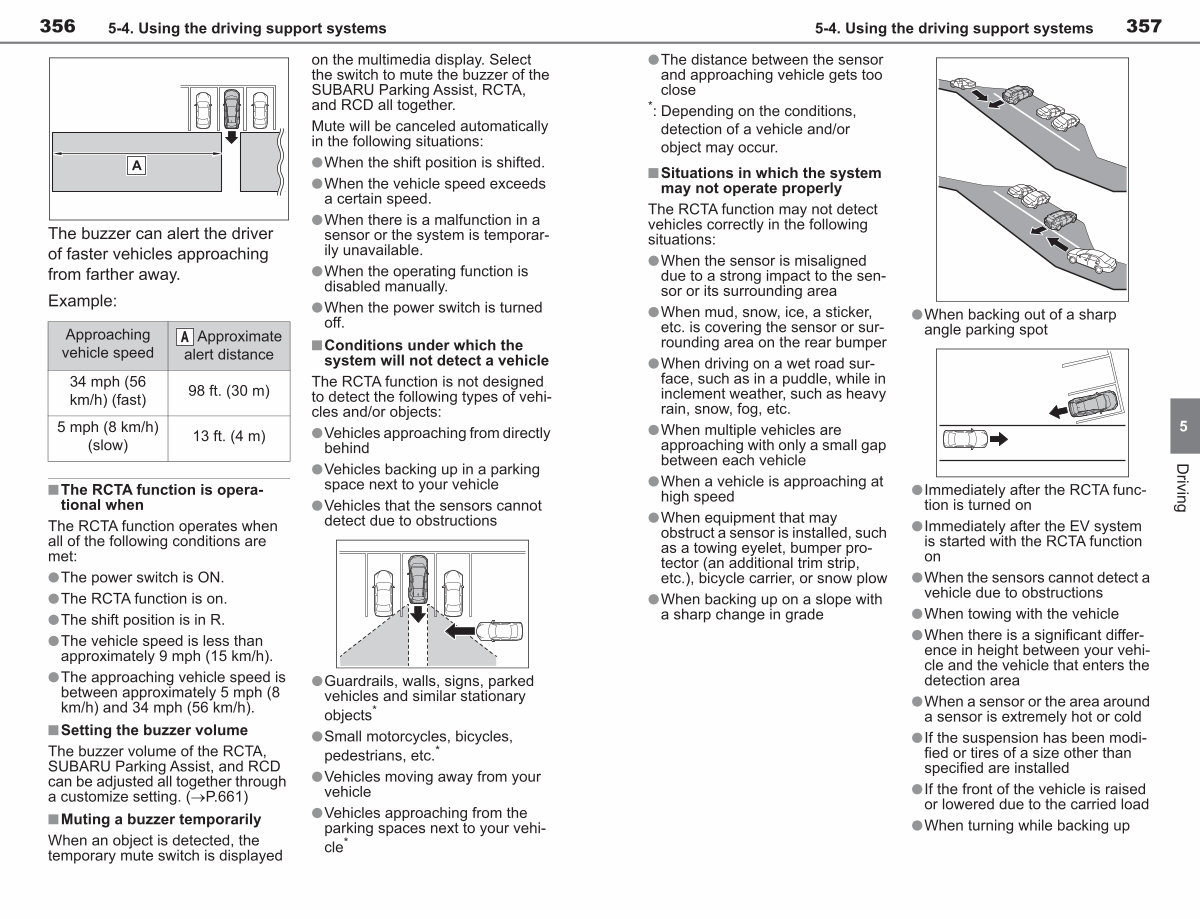

356 5-4. Using the driving support systems
The buzzer can alert the driver of faster vehicles approaching from farther away.
Example:
Approaching vehicle speed
34 mph( 56 km / h)( fast)
5 mph( 8 km / h)( slow)
A Approximate alert distance
98 ft.( 30 m)
13 ft.( 4 m)
n The RCTA function is operational when
The RCTA function operates when all of the following conditions are met:
lThe power switch is ON. lThe RCTA function is on. lThe shift position is in R.
lThe vehicle speed is less than approximately 9 mph( 15 km / h).
lThe approaching vehicle speed is between approximately 5 mph( 8 km / h) and 34 mph( 56 km / h).
n Setting the buzzer volume
The buzzer volume of the RCTA, SUBARU Parking Assist, and RCD can be adjusted all together through a customize setting.( �P. 661)
n Muting a buzzer temporarily
When an object is detected, the temporary mute switch is displayed on the multimedia display. Select the switch to mute the buzzer of the SUBARU Parking Assist, RCTA, and RCD all together.
Mute will be canceled automatically in the following situations:
lWhen the shift position is shifted.
lWhen the vehicle speed exceeds a certain speed.
lWhen there is a malfunction in a sensor or the system is temporarily unavailable.
lWhen the operating function is disabled manually.
lWhen the power switch is turned off.
nConditions under which the system will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles and / or objects:
lVehicles approaching from directly behind
lVehicles backing up in a parking space next to your vehicle
lVehicles that the sensors cannot detect due to obstructions
lGuardrails, walls, signs, parked vehicles and similar stationary
objects *
lSmall motorcycles, bicycles, pedestrians, etc. *
lVehicles moving away from your vehicle
lVehicles approaching from the parking spaces next to your vehicle *
