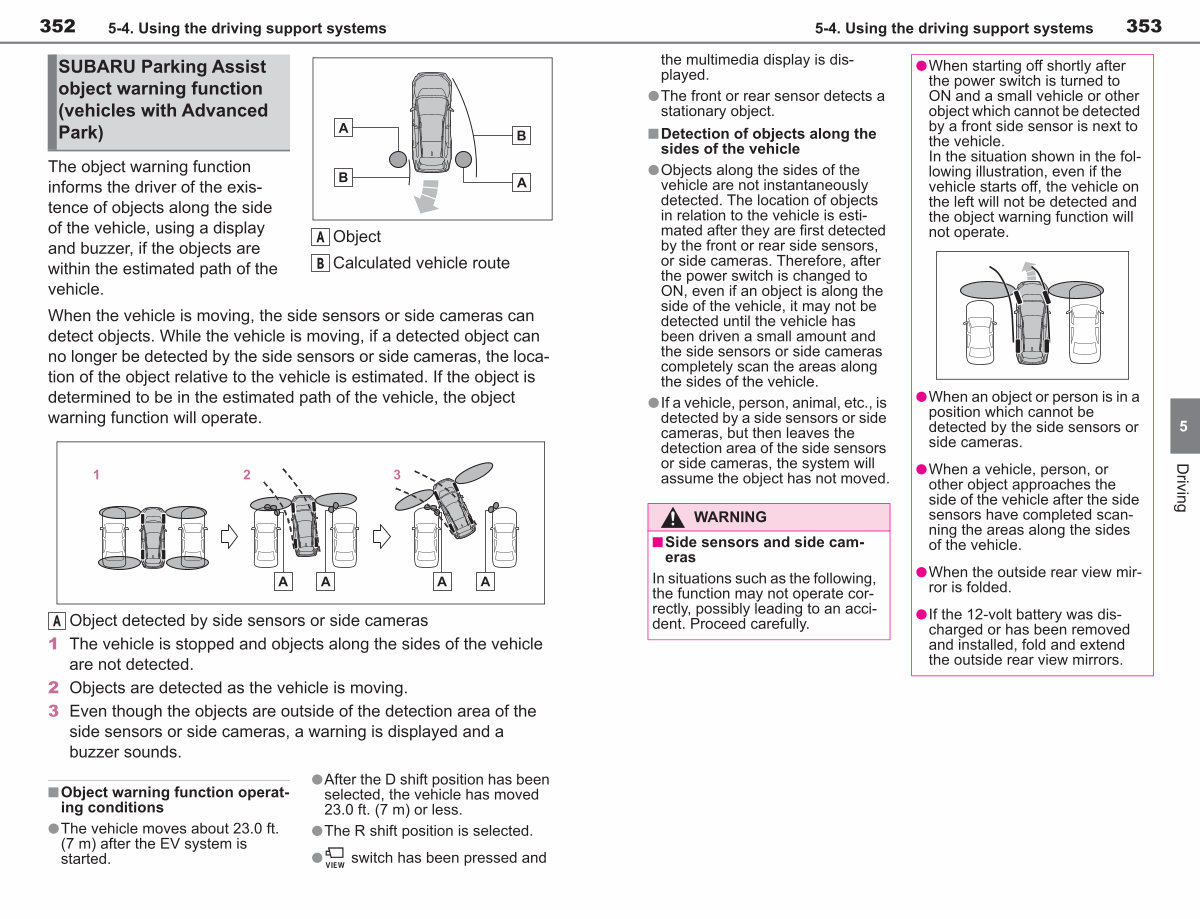

5-4. Using the driving support systems
353 the multimedia display is displayed.
lThe front or rear sensor detects a stationary object.
n Detection of objects along the sides of the vehicle
lObjects along the sides of the vehicle are not instantaneously
detected. The location of objects
in relation to the vehicle is estimated after they are first detected
by the front or rear side sensors,
or side cameras. Therefore, after the power switch is changed to
ON, even if an object is along the
side of the vehicle, it may not be detected until the vehicle has
been driven a small amount and the side sensors or side cameras completely scan the areas along the sides of the vehicle.
lIf a vehicle, person, animal, etc., is detected by a side sensors or side
cameras, but then leaves the detection area of the side sensors
or side cameras, the system will assume the object has not moved.
WARNING n Side sensors and side cameras
In situations such as the following, the function may not operate correctly, possibly leading to an accident. Proceed carefully. lWhen starting off shortly after the power switch is turned to ON and a small vehicle or other object which cannot be detected by a front side sensor is next to the vehicle.
In the situation shown in the following illustration, even if the
vehicle starts off, the vehicle on
the left will not be detected and the object warning function will
not operate.
lWhen an object or person is in a position which cannot be
detected by the side sensors or side cameras.
lWhen a vehicle, person, or other object approaches the
side of the vehicle after the side sensors have completed scanning the areas along the sides of the vehicle.
lWhen the outside rear view mirror is folded.
lIf the 12-volt battery was discharged or has been removed
and installed, fold and extend the outside rear view mirrors.
