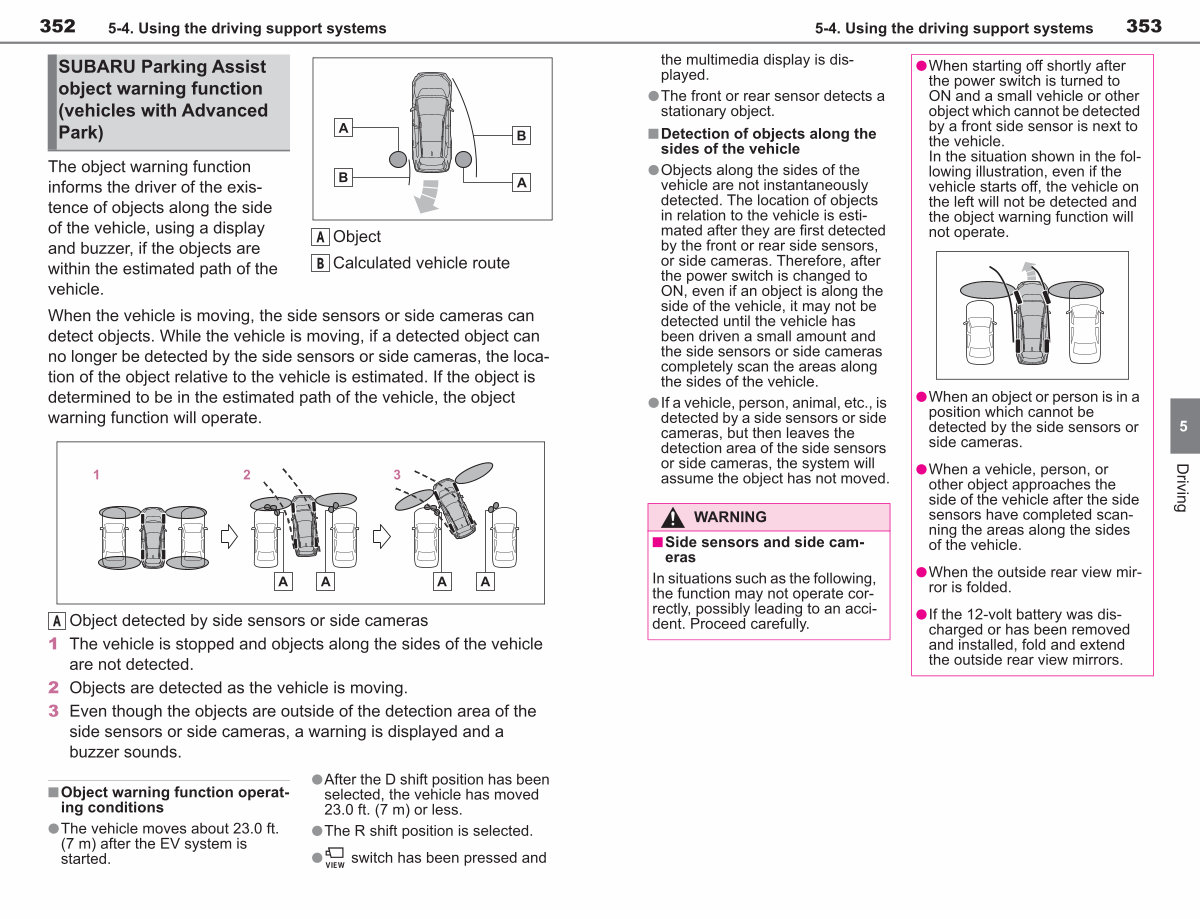

352 5-4. Using the driving support systems
SUBARU Parking Assist object warning function( vehicles with Advanced Park)
The object warning function informs the driver of the existence of objects along the side of the vehicle, using a display and buzzer, if the objects are within the estimated path of the vehicle.
A B
Object Calculated vehicle route
When the vehicle is moving, the side sensors or side cameras can detect objects. While the vehicle is moving, if a detected object can no longer be detected by the side sensors or side cameras, the location of the object relative to the vehicle is estimated. If the object is determined to be in the estimated path of the vehicle, the object warning function will operate.
A Object detected by side sensors or side cameras 1 The vehicle is stopped and objects along the sides of the vehicle are not detected. 2 Objects are detected as the vehicle is moving. 3 Even though the objects are outside of the detection area of the side sensors or side cameras, a warning is displayed and a buzzer sounds.
n Object warning function operating conditions
lThe vehicle moves about 23.0 ft.( 7 m) after the EV system is started. lAfter the D shift position has been selected, the vehicle has moved 23.0 ft.( 7 m) or less.
lThe R shift position is selected.
l switch has been pressed and
