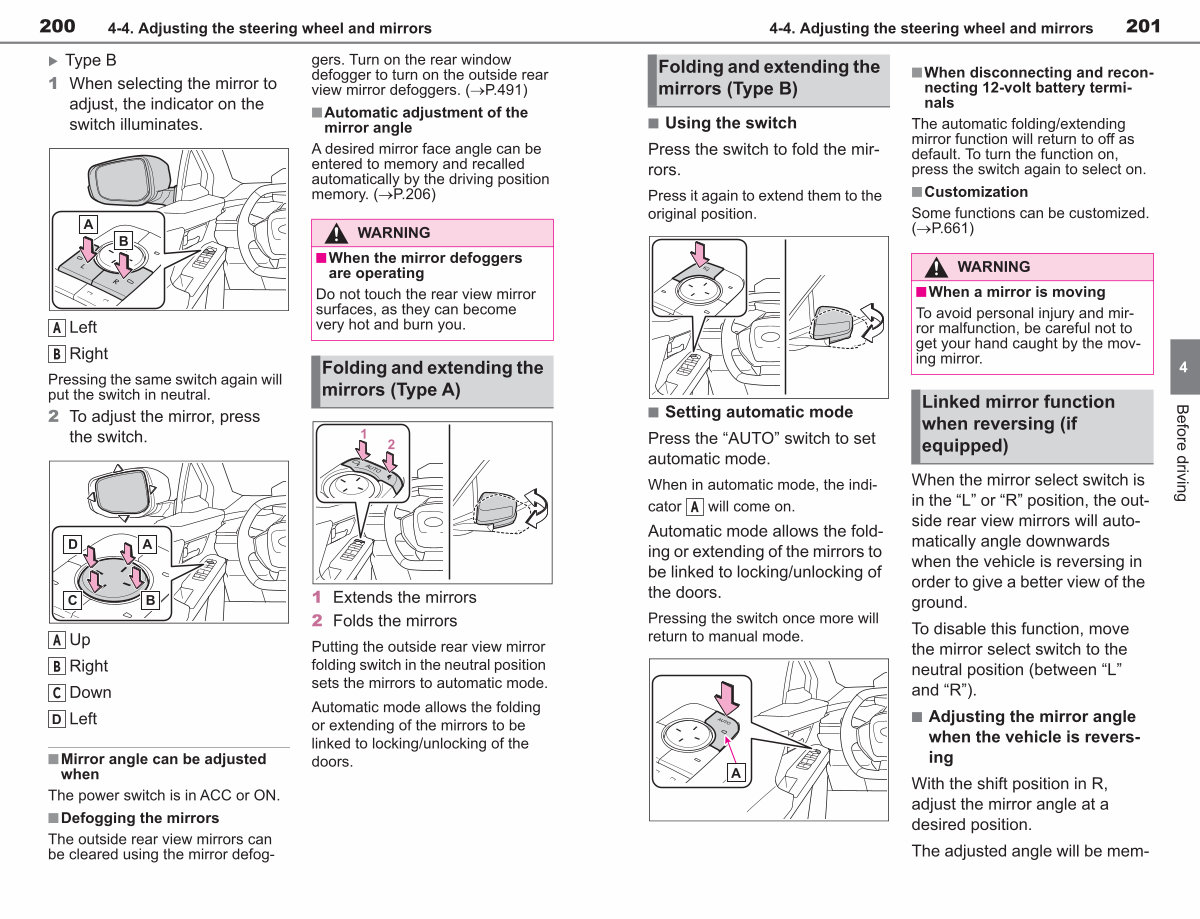

4-4. Adjusting the steering wheel and mirrors
201
Folding and extending the mirrors( Type B)
n Using the switch
Press the switch to fold the mirrors.
Press it again to extend them to the original position. nWhen disconnecting and reconnecting 12-volt battery terminals
The automatic folding / extending mirror function will return to off as
default. To turn the function on, press the switch again to select on.
nCustomization
Some functions can be customized.( �P. 661)
WARNING n When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to
get your hand caught by the moving mirror.
4 n Setting automatic mode
Press the“ AUTO” switch to set automatic mode.
When in automatic mode, the indicator A will come on.
Automatic mode allows the folding or extending of the mirrors to be linked to locking / unlocking of the doors.
Pressing the switch once more will return to manual mode.
Linked mirror function when reversing( if equipped)
When the mirror select switch is in the“ L” or“ R” position, the outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral position( between“ L” and“ R”).
n Adjusting the mirror angle when the vehicle is reversing
With the shift position in R, adjust the mirror angle at a desired position.
The adjusted angle will be mem-
Before driving
