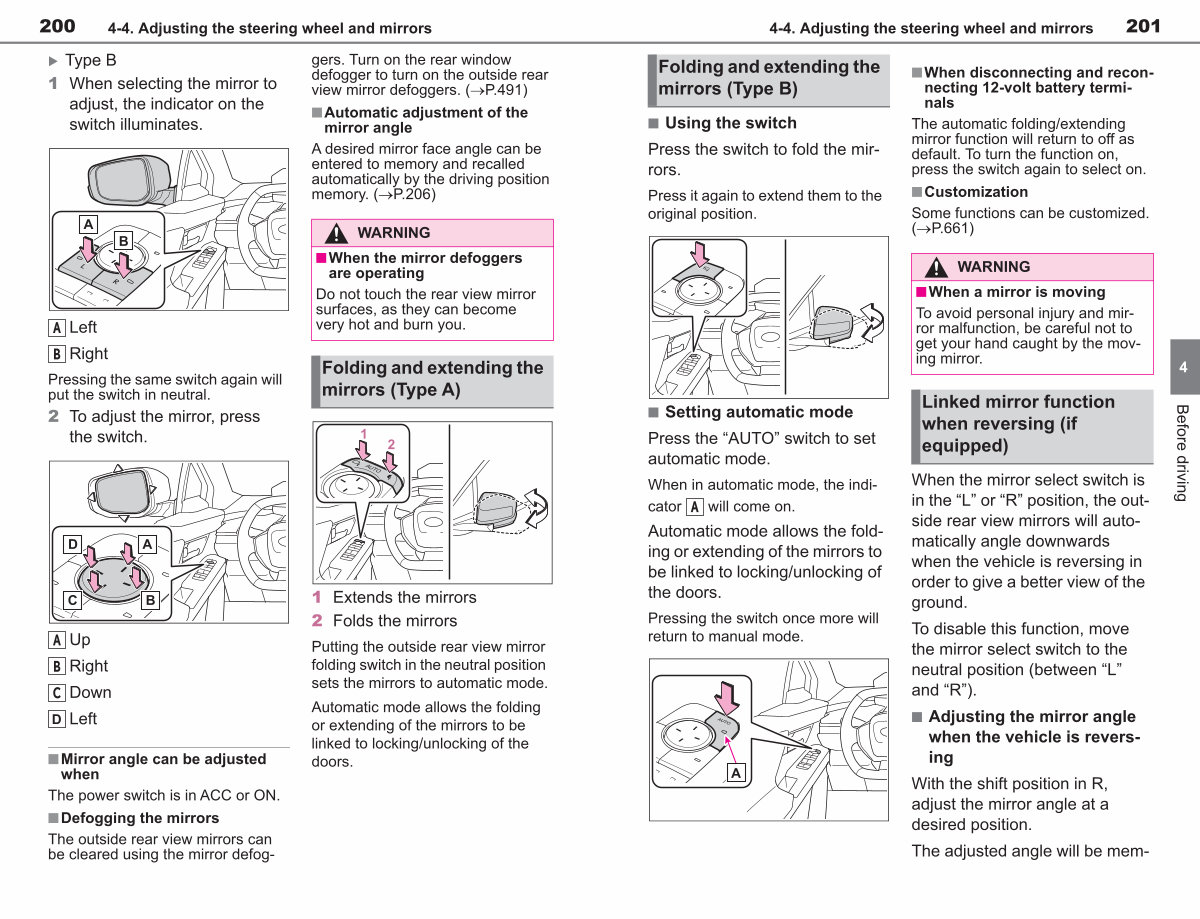

200 4-4. Adjusting the steering wheel and mirrors
� Type B 1 When selecting the mirror to adjust, the indicator on the switch illuminates.
A Left
B Right
Pressing the same switch again will put the switch in neutral.
2 To adjust the mirror, press the switch.
n Mirror angle can be adjusted when
The power switch is in ACC or ON. n Defogging the mirrors
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.( �P. 491)
nAutomatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled
automatically by the driving position memory.( �P. 206)
WARNING
n When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
Folding and extending the mirrors( Type A)
A Up
B Right
C Down Left
1 Extends the mirrors 2 Folds the mirrors
Putting the outside rear view mirror folding switch in the neutral position sets the mirrors to automatic mode.
Automatic mode allows the folding or extending of the mirrors to be linked to locking / unlocking of the doors.
