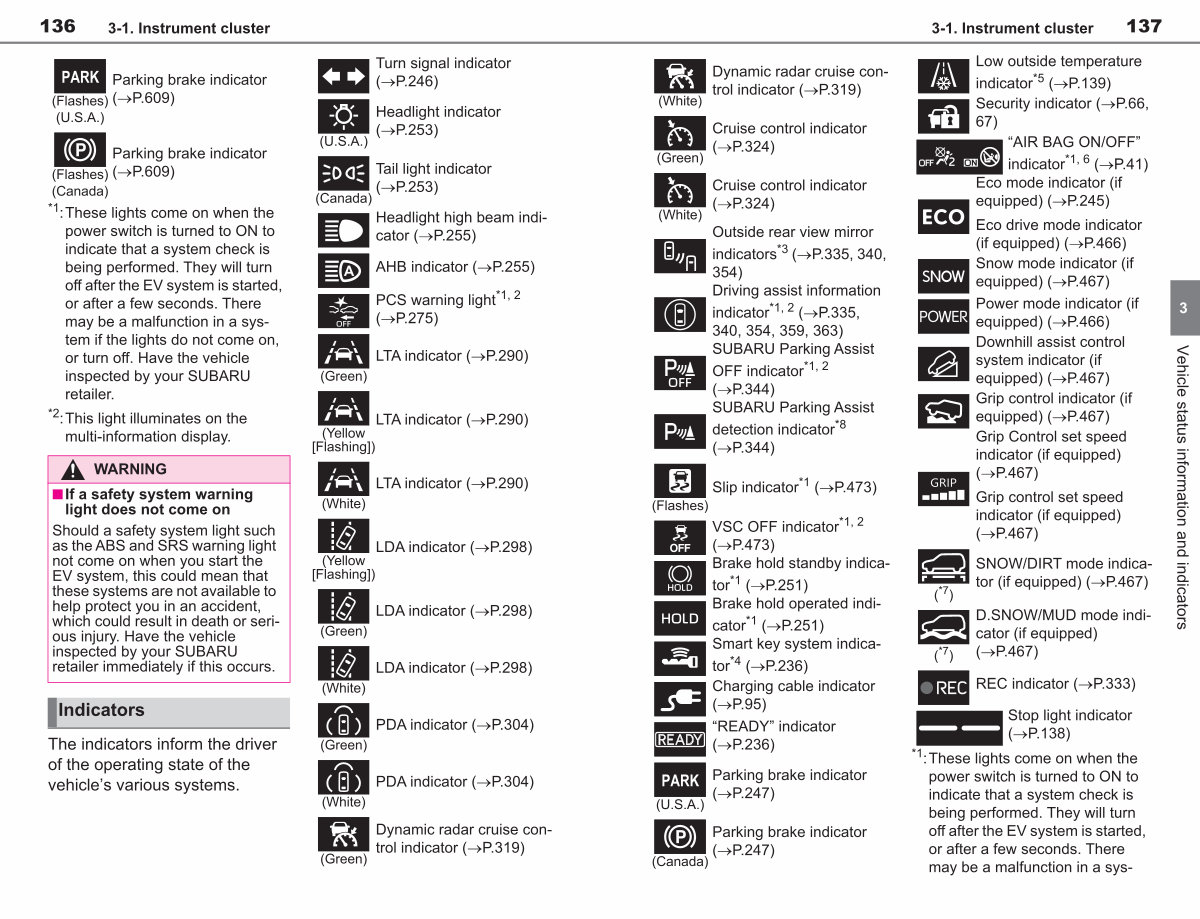

136 3-1. Instrument cluster
( Flashes)( U. S. A.)
Parking brake indicator( �P. 609)
Parking brake indicator
( Flashes)( �P. 609)( Canada) * 1: These lights come on when the
power switch is turned to ON to indicate that a system check is being performed. They will turn off after the EV system is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU retailer.
* 2: This light illuminates on the
multi-information display.
WARNING
n If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light
not come on when you start the EV system, this could mean that
these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your SUBARU retailer immediately if this occurs.
Indicators
The indicators inform the driver of the operating state of the vehicle’ s various systems.
( U. S. A.)
Turn signal indicator( �P. 246)
Headlight indicator( �P. 253)
Tail light indicator( �P. 253)
( Canada) Headlight high beam indicator( �P. 255)
( Green)
AHB indicator( �P. 255)
PCS warning light * 1, 2( �P. 275)
LTA indicator( �P. 290)
LTA indicator( �P. 290)
( Yellow [ Flashing ])
( White)
LTA indicator( �P. 290)
LDA indicator( �P. 298)
( Yellow [ Flashing ])
( Green)
( White)
( Green)
( White)
( Green)
LDA indicator( �P. 298)
LDA indicator( �P. 298)
PDA indicator( �P. 304)
PDA indicator( �P. 304)
Dynamic radar cruise control indicator( �P. 319)
