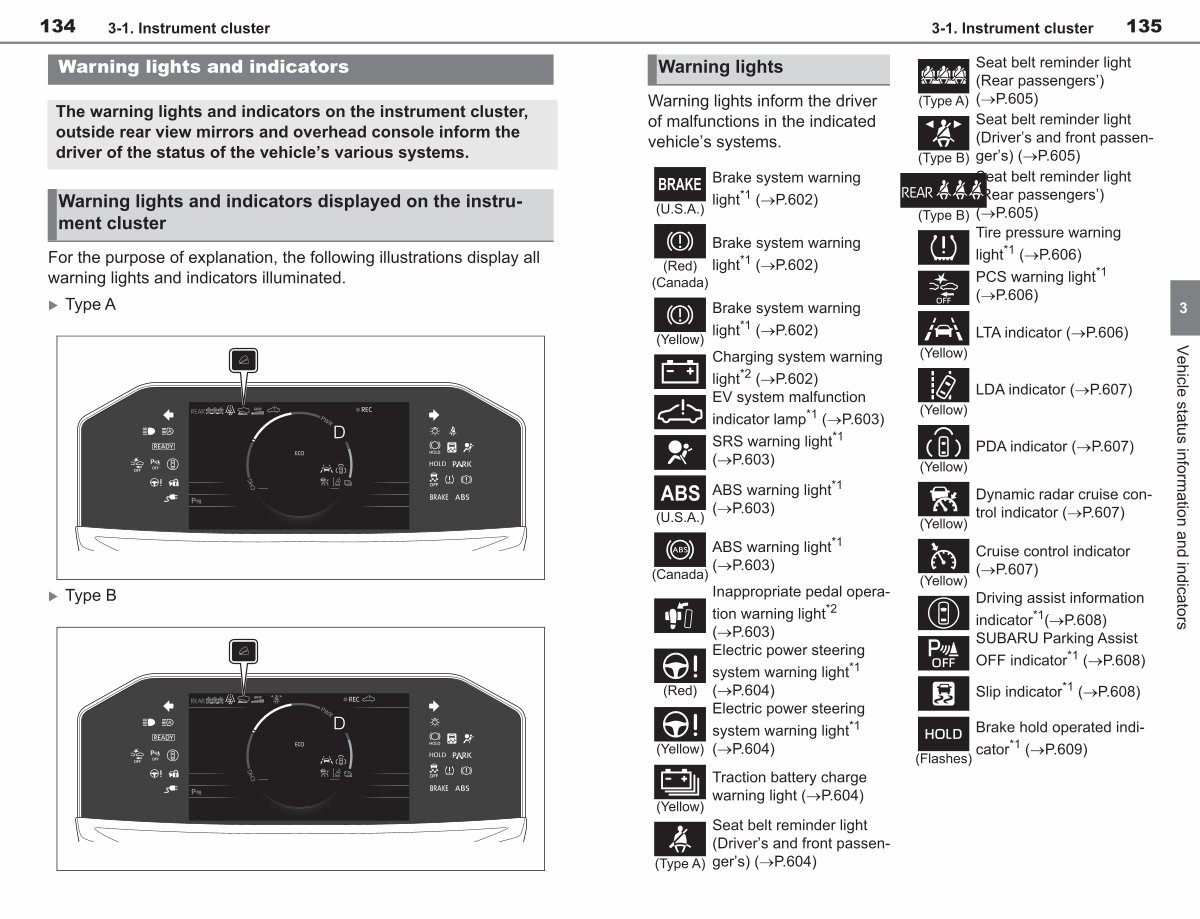

3-1. Instrument cluster
135
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’ s systems.
( U. S. A.)
( Red)( Canada)
Brake system warning light * 1( �P. 602)
Brake system warning light * 1( �P. 602)
Brake system warning light * 1( �P. 602)
( Yellow) Charging system warning
light * 2( �P. 602) EV system malfunction
indicator lamp * 1( �P. 603)
SRS warning light * 1( �P. 603)
( U. S. A.)
ABS warning light * 1( �P. 603)
ABS warning light * 1( �P. 603)
( Canada) Inappropriate pedal operation warning light * 2( �P. 603) Electric power steering
system warning light * 1
( Red)( �P. 604) Electric power steering
system warning light * 1( Yellow)( �P. 604)
( Yellow)
( Type A)
Traction battery charge warning light( �P. 604)
Seat belt reminder light( Driver’ s and front passenger’ s)( �P. 604)
( Type A)
( Type B)
( Type B)
( Yellow)
( Yellow)
( Yellow)
( Yellow)
Seat belt reminder light( Rear passengers’)( �P. 605) Seat belt reminder light( Driver’ s and front passenger’ s)( �P. 605) Seat belt reminder light( Rear passengers’)( �P. 605) Tire pressure warning light * 1( �P. 606)
PCS warning light * 1( �P. 606)
LTA indicator( �P. 606)
LDA indicator( �P. 607)
PDA indicator( �P. 607)
Dynamic radar cruise control indicator( �P. 607)
Cruise control indicator( �P. 607)
( Yellow) Driving assist information
indicator * 1( �P. 608) SUBARU Parking Assist
OFF indicator * 1( �P. 608)
Slip indicator * 1( �P. 608)
Brake hold operated indicator * 1( �P. 609)
( Flashes)
3
Vehicle status information and indicators
