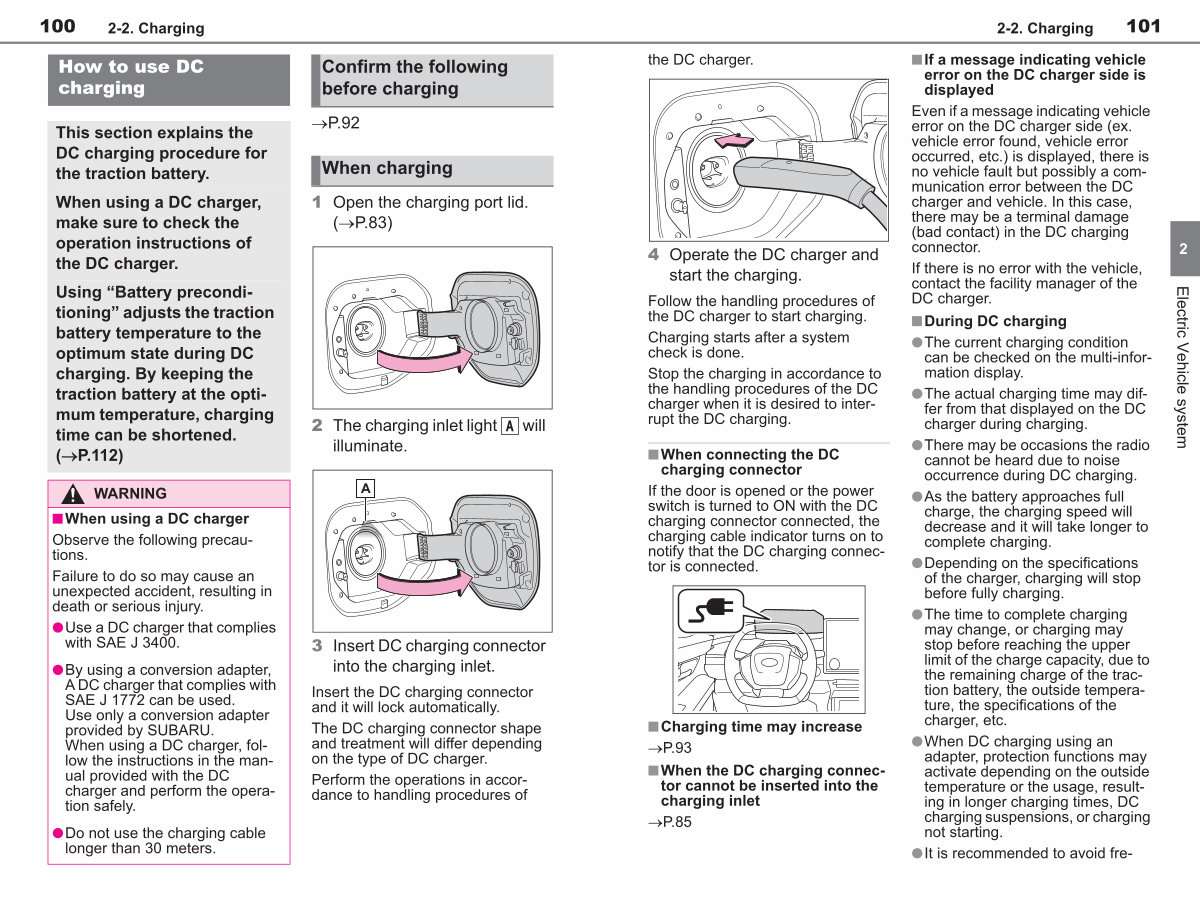

2-2. Charging
101 the DC charger.
4 Operate the DC charger and start the charging.
Follow the handling procedures of the DC charger to start charging.
Charging starts after a system check is done.
Stop the charging in accordance to the handling procedures of the DC charger when it is desired to interrupt the DC charging.
n When connecting the DC charging connector
If the door is opened or the power switch is turned to ON with the DC charging connector connected, the charging cable indicator turns on to notify that the DC charging connector is connected.
n Charging time may increase �P. 93
n When the DC charging connector cannot be inserted into the charging inlet
�P. 85 nIf a message indicating vehicle error on the DC charger side is displayed
Even if a message indicating vehicle error on the DC charger side( ex. vehicle error found, vehicle error
occurred, etc.) is displayed, there is no vehicle fault but possibly a communication error between the DC
charger and vehicle. In this case, there may be a terminal damage
( bad contact) in the DC charging connector.
If there is no error with the vehicle,
contact the facility manager of the DC charger.
nDuring DC charging
lThe current charging condition can be checked on the multi-information display.
lThe actual charging time may differ from that displayed on the DC charger during charging.
lThere may be occasions the radio
cannot be heard due to noise occurrence during DC charging.
lAs the battery approaches full charge, the charging speed will
decrease and it will take longer to complete charging.
lDepending on the specifications
of the charger, charging will stop before fully charging.
lThe time to complete charging may change, or charging may
stop before reaching the upper
limit of the charge capacity, due to the remaining charge of the traction battery, the outside temperature, the specifications of the charger, etc.
lWhen DC charging using an adapter, protection functions may activate depending on the outside temperature or the usage, resulting in longer charging times, DC charging suspensions, or charging not starting.
lIt is recommended to avoid fre-
2
Electric Vehicle system
