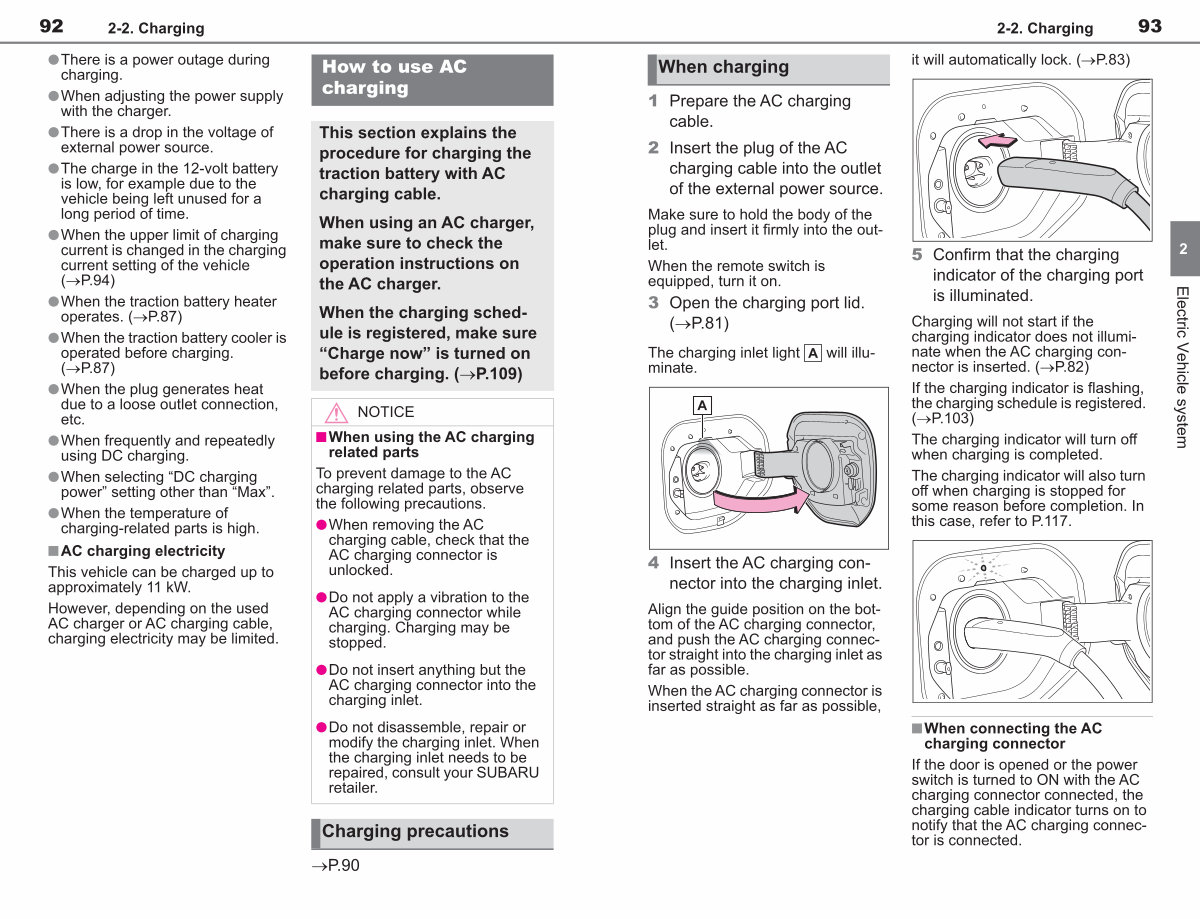

2-2. Charging
93
When charging
1 Prepare the AC charging cable.
2 Insert the plug of the AC charging cable into the outlet of the external power source.
Make sure to hold the body of the plug and insert it firmly into the outlet.
When the remote switch is equipped, turn it on.
3 Open the charging port lid.( �P. 81) will illu-
The charging inlet light minate. it will automatically lock.( �P. 83)
5 Confirm that the charging indicator of the charging port is illuminated.
Charging will not start if the charging indicator does not illuminate when the AC charging connector is inserted.( �P. 82)
If the charging indicator is flashing, the charging schedule is registered.( �P. 103)
The charging indicator will turn off when charging is completed.
The charging indicator will also turn off when charging is stopped for some reason before completion. In this case, refer to P. 117.
2
Electric Vehicle system
4 Insert the AC charging connector into the charging inlet.
Align the guide position on the bottom of the AC charging connector, and push the AC charging connector straight into the charging inlet as
far as possible.
When the AC charging connector is inserted straight as far as possible, nWhen connecting the AC charging connector
If the door is opened or the power switch is turned to ON with the AC charging connector connected, the
charging cable indicator turns on to notify that the AC charging connector is connected.
