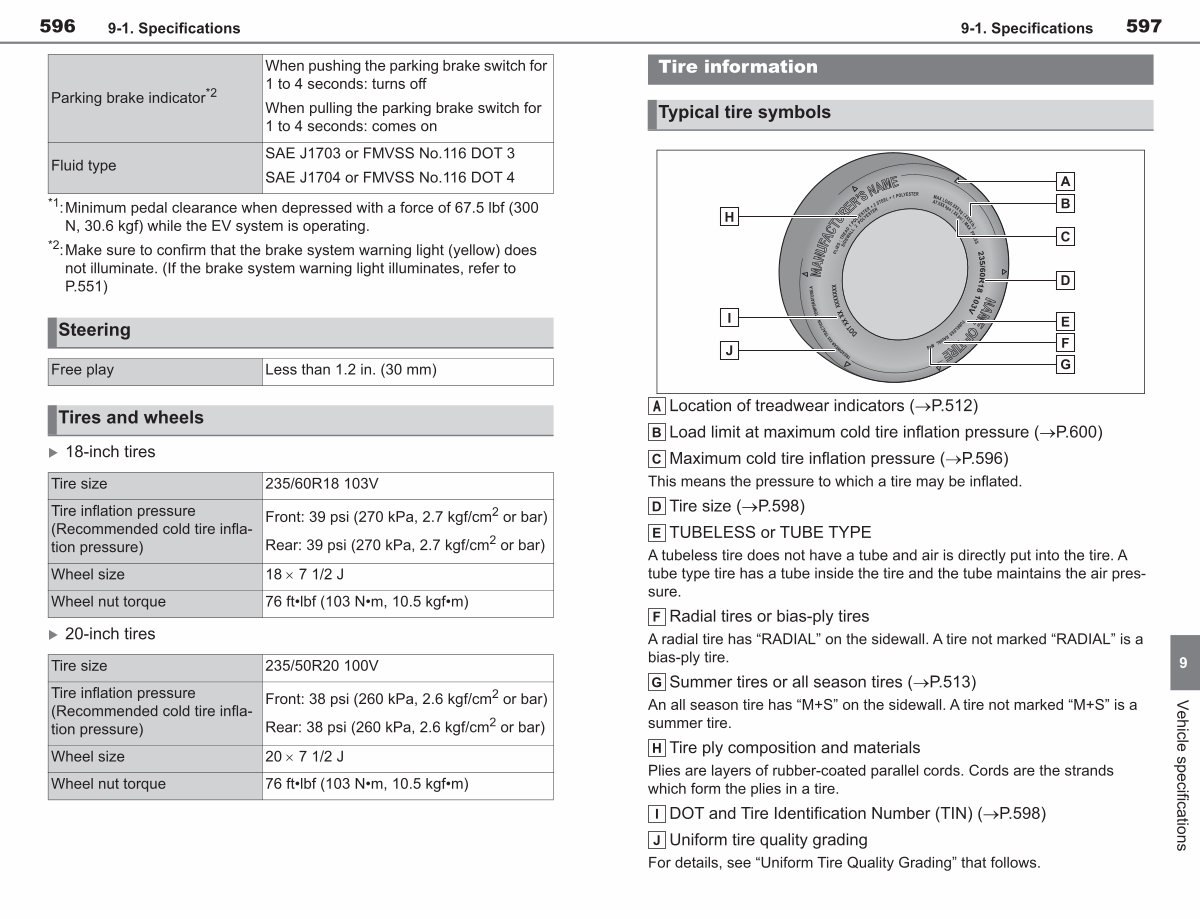

596 9-1. Specifications
Parking brake indicator * 2
Fluid type
When pushing the parking brake switch for 1 to 4 seconds: turns off
When pulling the parking brake switch for 1 to 4 seconds: comes on
SAE J1703 or FMVSS No. 116 DOT 3 SAE J1704 or FMVSS No. 116 DOT 4
* 1: Minimum pedal clearance when depressed with a force of 67.5 lbf( 300 N, 30.6 kgf) while the EV system is operating.
* 2: Make sure to confirm that the brake system warning light( yellow) does
not illuminate.( If the brake system warning light illuminates, refer to P. 551)
Steering
Free play Less than 1.2 in.( 30 mm)
Tires and wheels
� 18-inch tires Tire size
Tire inflation pressure( Recommended cold tire inflation pressure)
Wheel size
� 20-inch tires
235 / 60R18 103V Front: 39 psi( 270 kPa, 2.7 kgf / cm 2 or bar) Rear: 39 psi( 270 kPa, 2.7 kgf / cm 2 or bar) 18 � 7 1 / 2 J Wheel nut torque 76 ft • lbf( 103 N • m, 10.5 kgf • m)
Tire size
Tire inflation pressure( Recommended cold tire inflation pressure)
Wheel size
235 / 50R20 100V Front: 38 psi( 260 kPa, 2.6 kgf / cm 2 or bar) Rear: 38 psi( 260 kPa, 2.6 kgf / cm 2 or bar) 20 � 7 1 / 2 J
Wheel nut torque 76 ft • lbf( 103 N • m, 10.5 kgf • m)
