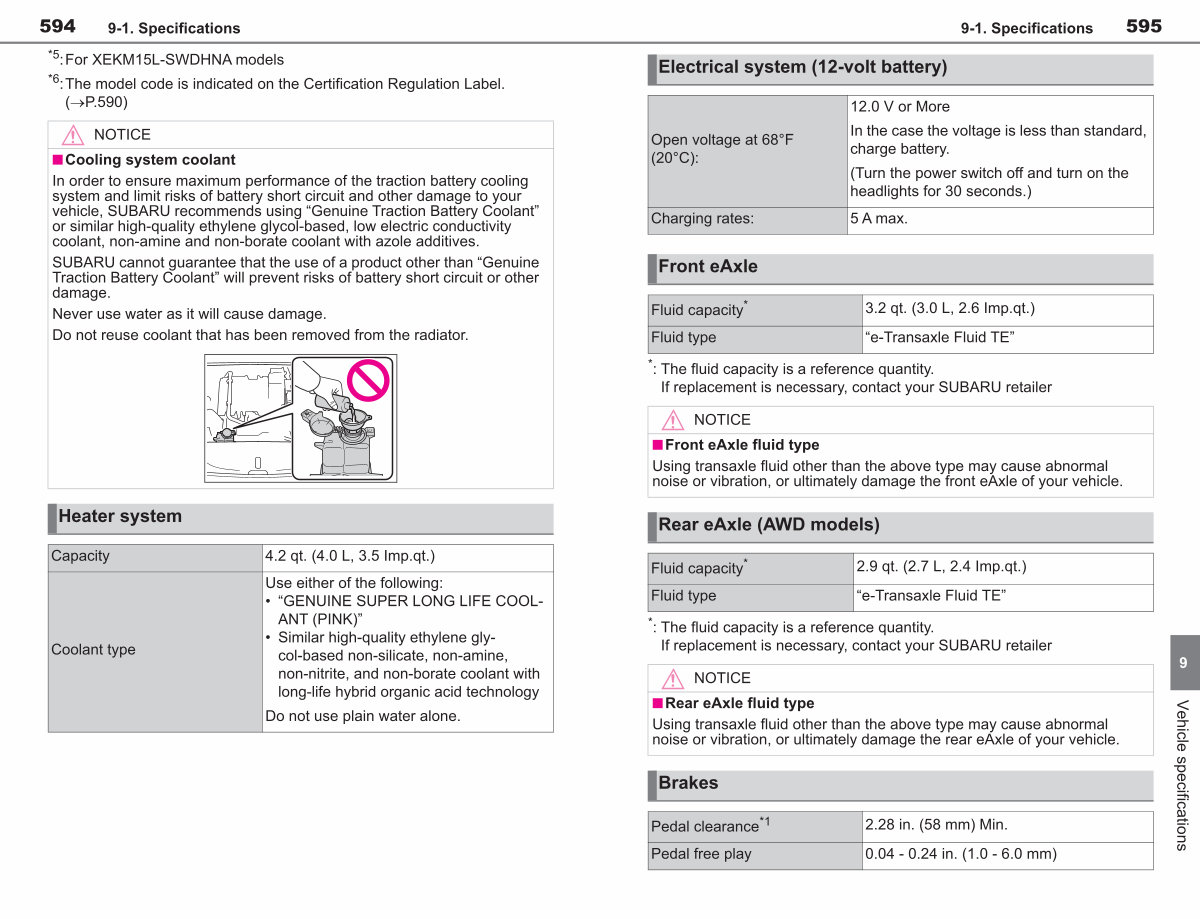

9-1. Specifications
595
Electrical system( 12-volt battery)
Open voltage at 68 ° F( 20 ° C):
Charging rates: 5 A max.
12.0 V or More
In the case the voltage is less than standard, charge battery.
( Turn the power switch off and turn on the headlights for 30 seconds.)
Front eAxle
Fluid capacity * 3.2 qt.( 3.0 L, 2.6 Imp. qt.) Fluid type“ e-Transaxle Fluid TE” *: The fluid capacity is a reference quantity. If replacement is necessary, contact your SUBARU retailer
NOTICE n Front eAxle fluid type
Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the front eAxle of your vehicle.
Rear eAxle( AWD models)
Fluid capacity * 2.9 qt.( 2.7 L, 2.4 Imp. qt.) Fluid type“ e-Transaxle Fluid TE” *: The fluid capacity is a reference quantity. If replacement is necessary, contact your SUBARU retailer
NOTICE n Rear eAxle fluid type
Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the rear eAxle of your vehicle.
Brakes
Pedal clearance * 1 2.28 in.( 58 mm) Min. Pedal free play 0.04- 0.24 in.( 1.0- 6.0 mm)
9
Vehicle specifications
