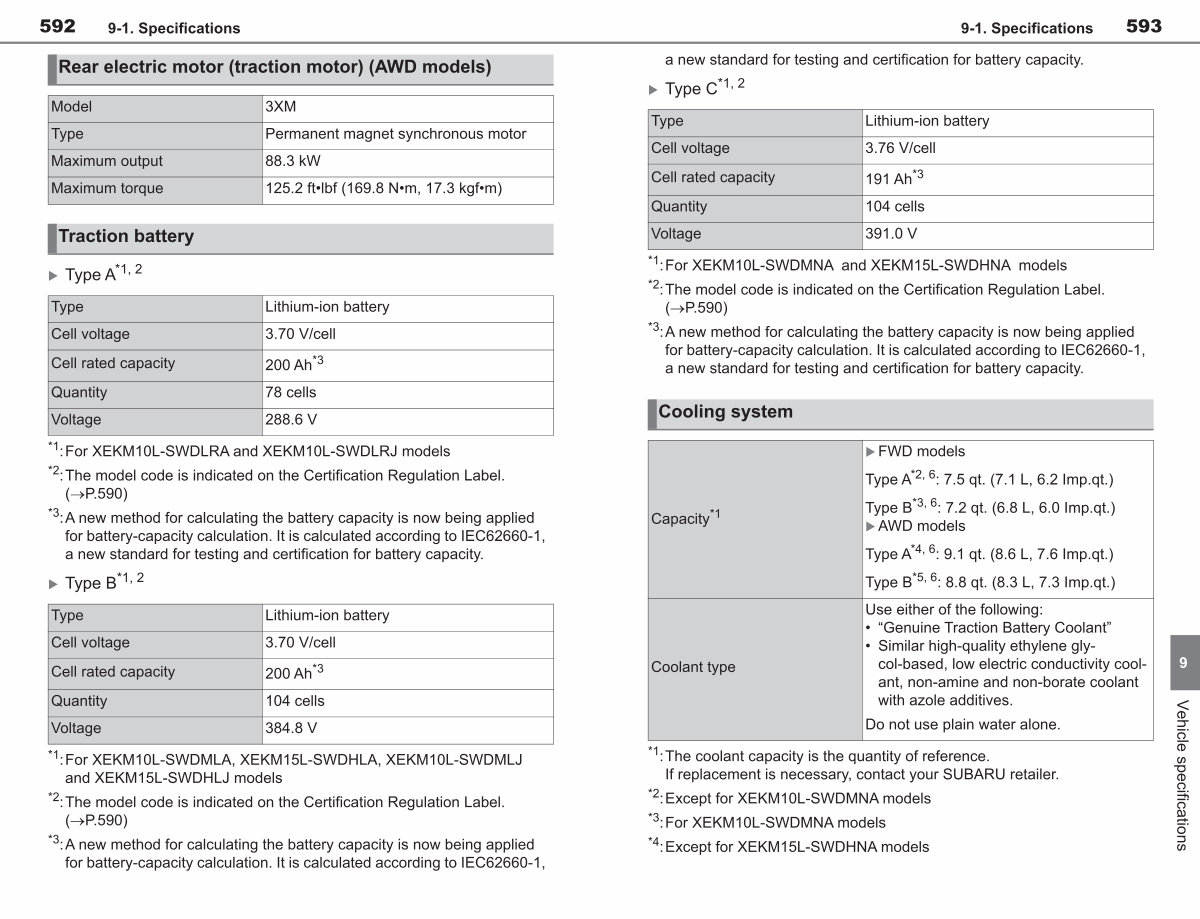

9-1. Specifications
593 a new standard for testing and certification for battery capacity.
� Type C * 1, 2 Type
Lithium-ion battery
Cell voltage
3.76 V / cell Cell rated capacity 191 Ah * 3 Quantity Voltage
104 cells 391.0 V
* 1: For XEKM10L-SWDMNA and XEKM15L-SWDHNA models * 2: The model code is indicated on the Certification Regulation Label.
( �P. 590)
* 3: A new method for calculating the battery capacity is now being applied
for battery-capacity calculation. It is calculated according to IEC62660-1, a new standard for testing and certification for battery capacity.
Cooling system
� FWD models Type A * 2, 6: 7.5 qt.( 7.1 L, 6.2 Imp. qt.)
Capacity * 1
Coolant type
* 1: The coolant capacity is the quantity of reference.
If replacement is necessary, contact your SUBARU retailer.
* 2: Except for XEKM10L-SWDMNA models
* 3: For XEKM10L-SWDMNA models * 4: Except for XEKM15L-SWDHNA models
Type B * 3, 6: 7.2 qt.( 6.8 L, 6.0 Imp. qt.)
� AWD models
Type A * 4, 6: 9.1 qt.( 8.6 L, 7.6 Imp. qt.) Type B * 5, 6: 8.8 qt.( 8.3 L, 7.3 Imp. qt.)
Use either of the following:
•“ Genuine Traction Battery Coolant”
• Similar high-quality ethylene glycol-based, low electric conductivity coolant, non-amine and non-borate coolant with azole additives.
Do not use plain water alone.
9
Vehicle specifications
