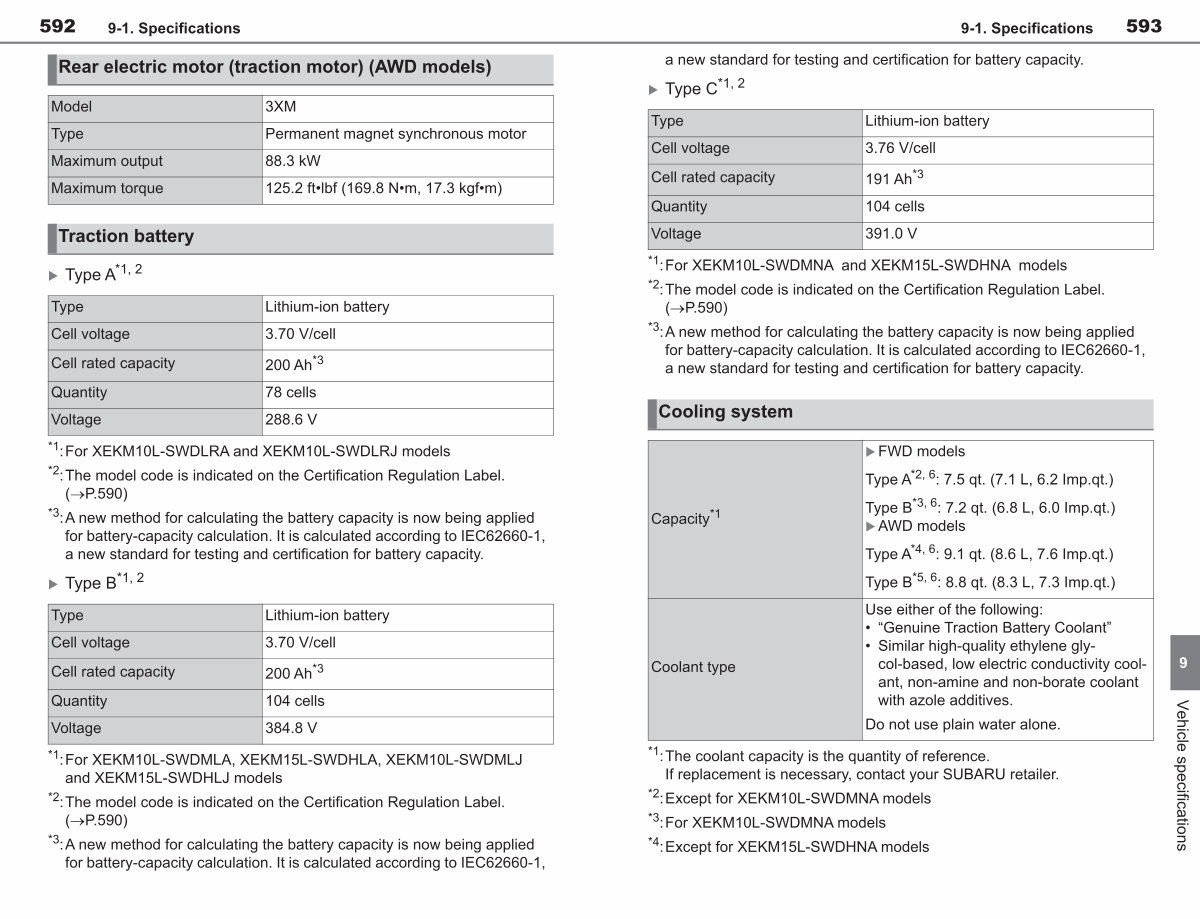

592 9-1. Specifications
Rear electric motor( traction motor)( AWD models)
Model |
3XM |
Type |
Permanent magnet synchronous motor |
Maximum output |
88.3 kW |
Maximum torque |
125.2 ft • lbf( 169.8 N • m, 17.3 kgf • m) |
Traction battery
� Type A * 1, 2 Type
Lithium-ion battery
Cell voltage
3.70 V / cell Cell rated capacity 200 Ah * 3 Quantity Voltage
78 cells 288.6 V
* 1: For XEKM10L-SWDLRA and XEKM10L-SWDLRJ models * 2: The model code is indicated on the Certification Regulation Label.
( �P. 590)
* 3: A new method for calculating the battery capacity is now being applied
for battery-capacity calculation. It is calculated according to IEC62660-1, a new standard for testing and certification for battery capacity.
� Type B * 1, 2 Type Cell voltage
Lithium-ion battery
3.70 V / cell Cell rated capacity 200 Ah * 3 Quantity Voltage
104 cells 384.8 V
* 1: For XEKM10L-SWDMLA, XEKM15L-SWDHLA, XEKM10L-SWDMLJ and XEKM15L-SWDHLJ models
* 2: The model code is indicated on the Certification Regulation Label.
( �P. 590)
* 3: A new method for calculating the battery capacity is now being applied
for battery-capacity calculation. It is calculated according to IEC62660-1,
