1-2. Child safety
57

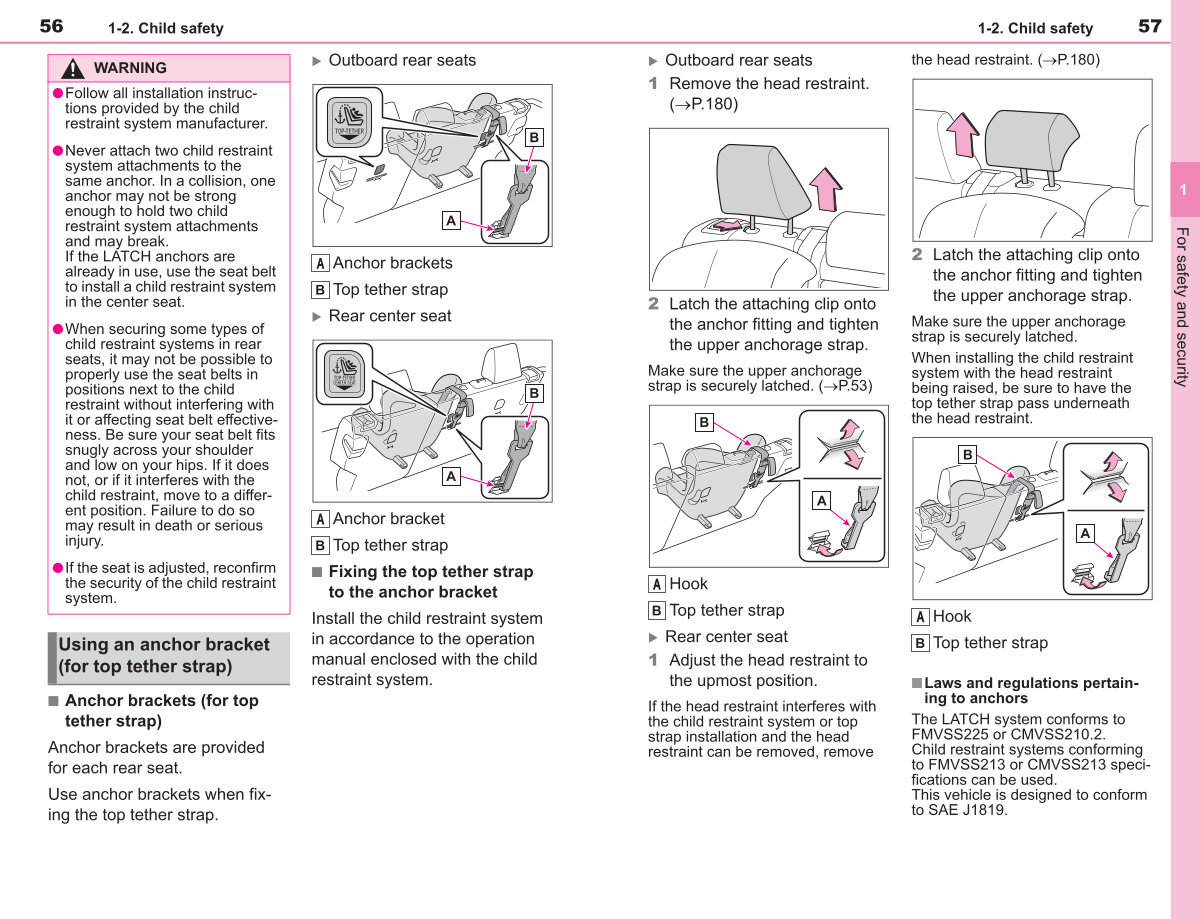

� Outboard rear seats 1 Remove the head restraint.
( �P. 180) the head restraint.( �P. 180)
1
2 Latch the attaching clip onto the anchor fitting and tighten the upper anchorage strap.
Make sure the upper anchorage strap is securely latched.( �P. 53)
2 Latch the attaching clip onto the anchor fitting and tighten the upper anchorage strap.
Make sure the upper anchorage strap is securely latched.
When installing the child restraint system with the head restraint being raised, be sure to have the top tether strap pass underneath the head restraint.
For safety and security
A Hook Top tether strap
� Rear center seat 1 Adjust the head restraint to the upmost position.
If the head restraint interferes with the child restraint system or top strap installation and the head restraint can be removed, remove
A Hook Top tether strap
nLaws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used. This vehicle is designed to conform to SAE J1819.
