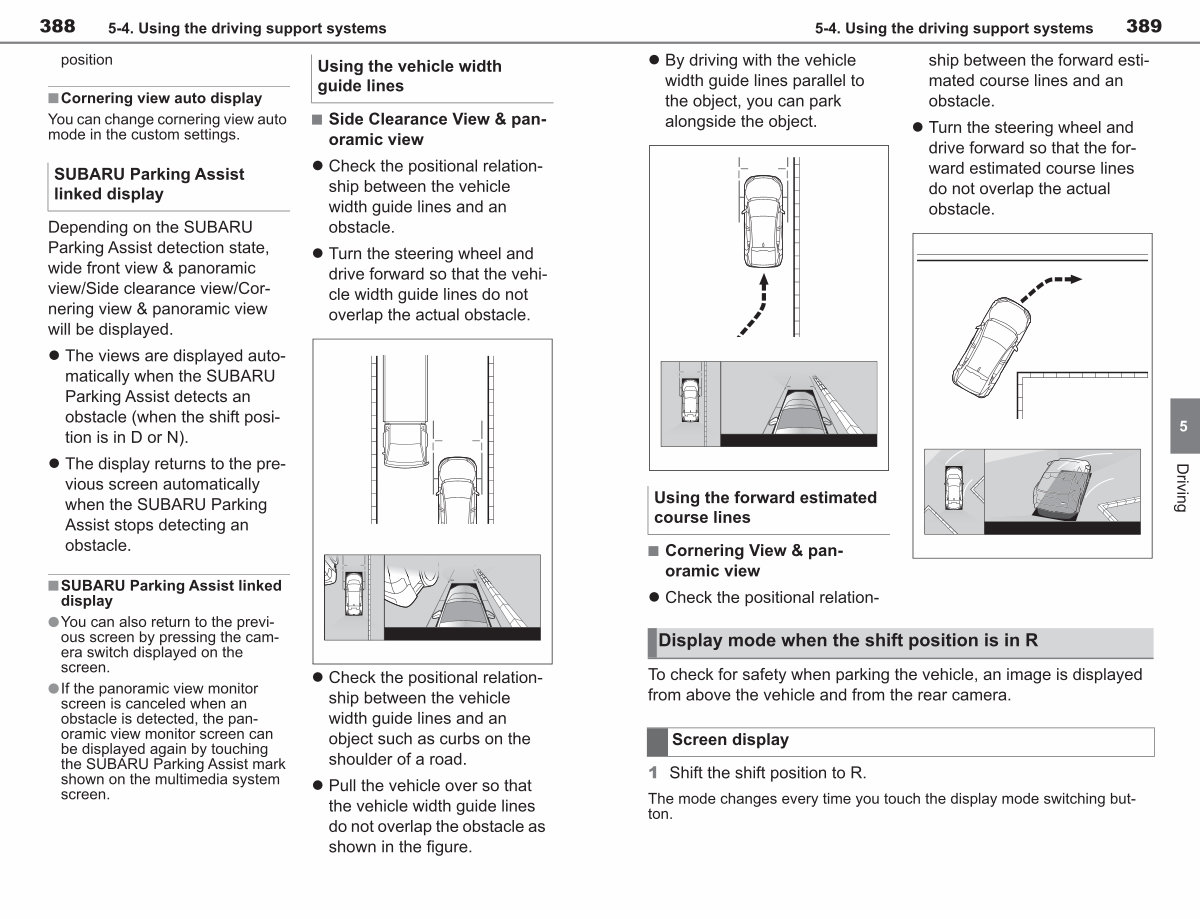

388 5-4. Using the driving support systems position
n Cornering view auto display
You can change cornering view auto mode in the custom settings.
SUBARU Parking Assist linked display
Depending on the SUBARU Parking Assist detection state, wide front view & panoramic view / Side clearance view / Cornering view & panoramic view will be displayed.
• The views are displayed automatically when the SUBARU Parking Assist detects an obstacle( when the shift position is in D or N).
• The display returns to the previous screen automatically when the SUBARU Parking Assist stops detecting an obstacle.
n SUBARU Parking Assist linked display
lYou can also return to the previous screen by pressing the camera switch displayed on the screen.
lIf the panoramic view monitor screen is canceled when an
obstacle is detected, the panoramic view monitor screen can be displayed again by touching the SUBARU Parking Assist mark shown on the multimedia system screen.
Using the vehicle width guide lines
n Side Clearance View & panoramic view
• Check the positional relationship between the vehicle width guide lines and an obstacle.
• Turn the steering wheel and drive forward so that the vehicle width guide lines do not overlap the actual obstacle.
• Check the positional relationship between the vehicle width guide lines and an object such as curbs on the shoulder of a road.
• Pull the vehicle over so that the vehicle width guide lines do not overlap the obstacle as shown in the figure.
