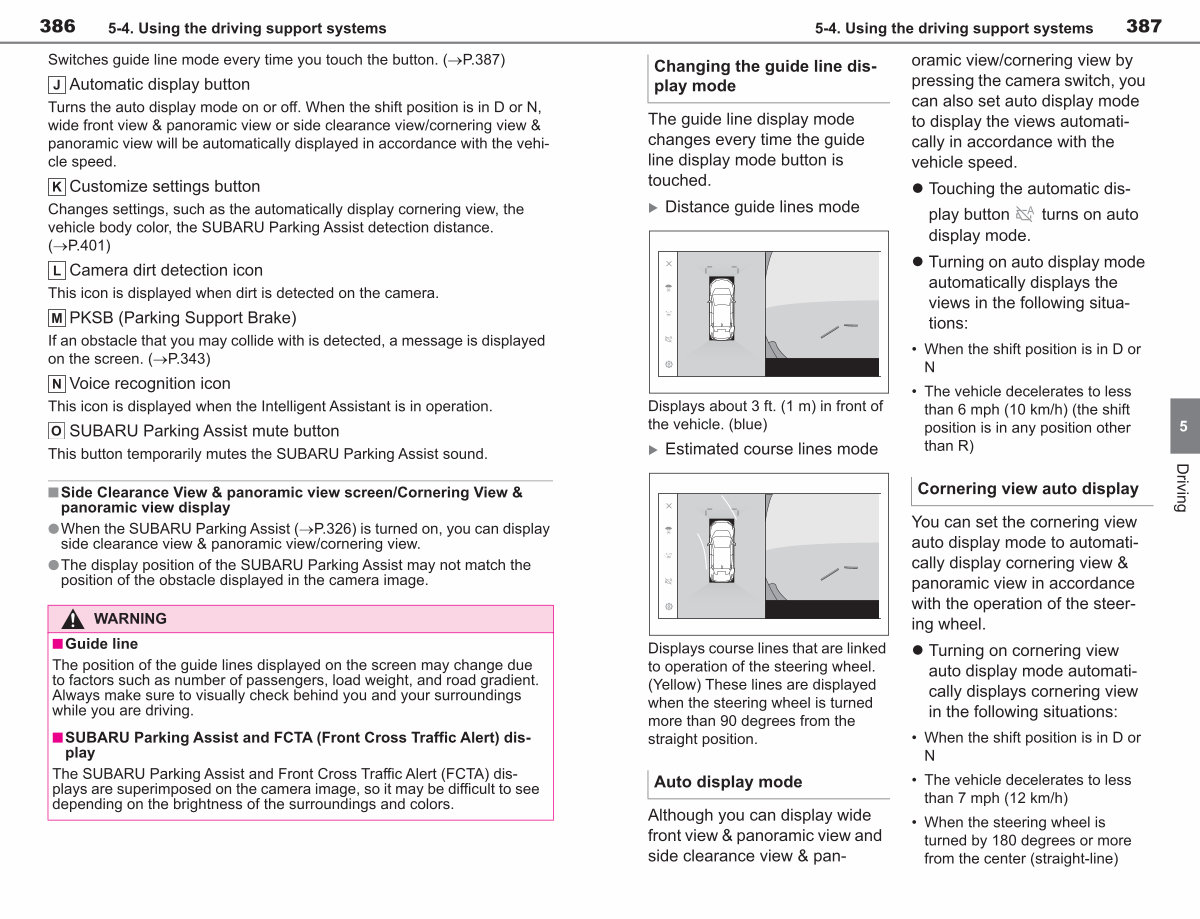

5-4. Using the driving support systems
387
Changing the guide line display mode
The guide line display mode changes every time the guide line display mode button is touched.
� Distance guide lines mode
Displays about 3 ft.( 1 m) in front of the vehicle.( blue)
� Estimated course lines mode
Although you can display wide front view & panoramic view and side clearance view & panoramic view / cornering view by pressing the camera switch, you can also set auto display mode to display the views automatically in accordance with the vehicle speed.
• Touching the automatic display button turns on auto display mode.
• Turning on auto display mode automatically displays the views in the following situations:
• When the shift position is in D or N
• The vehicle decelerates to less than 6 mph( 10 km / h)( the shift position is in any position other than R)
5
Displays course lines that are linked to operation of the steering wheel.( Yellow) These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position.
Auto display mode
Cornering view auto display
You can set the cornering view auto display mode to automatically display cornering view & panoramic view in accordance with the operation of the steering wheel.
• Turning on cornering view auto display mode automatically displays cornering view in the following situations:
• When the shift position is in D or N
• The vehicle decelerates to less than 7 mph( 12 km / h)
• When the steering wheel is turned by 180 degrees or more from the center( straight-line)
Driving
