5-4. Using the driving support systems
377

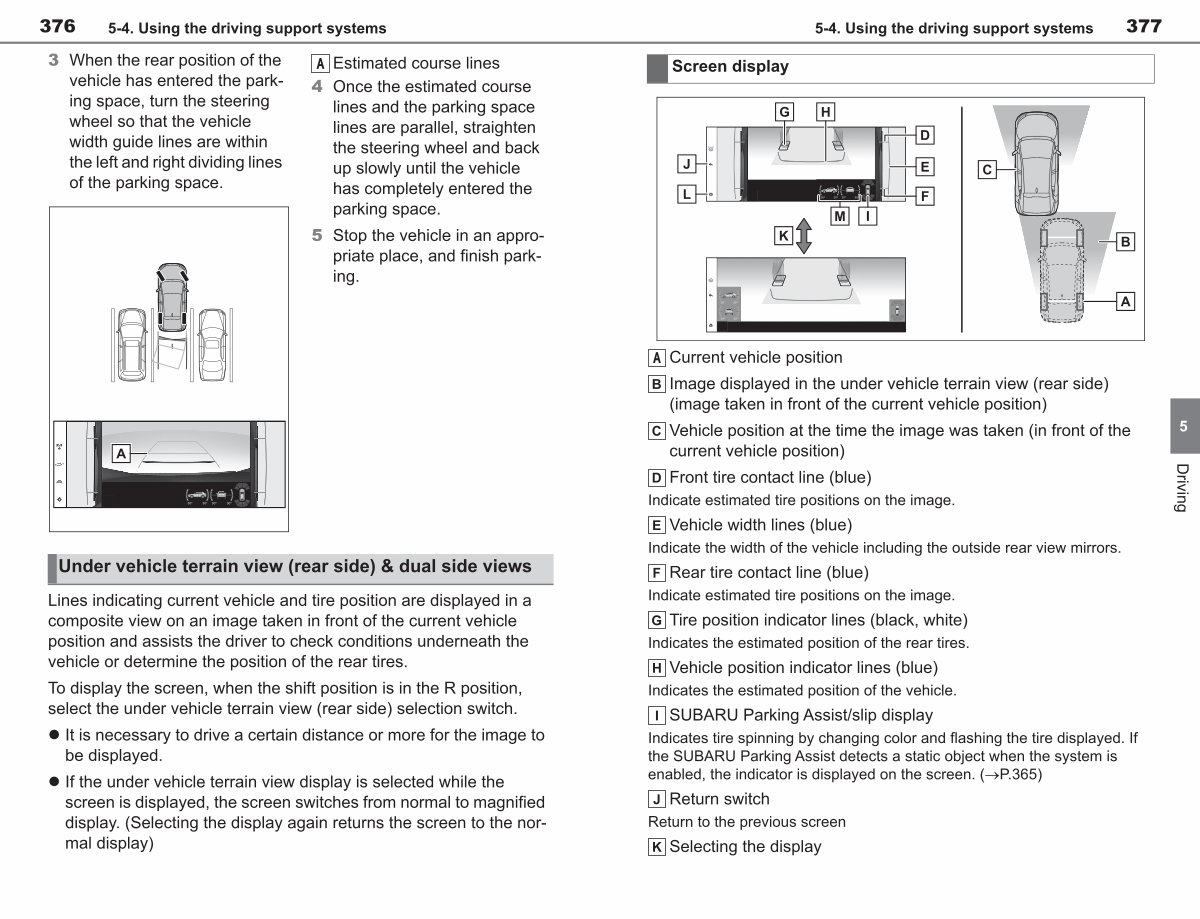

Screen display
A Current vehicle position
Image displayed in the under vehicle terrain view( rear side)( image taken in front of the current vehicle position)
Vehicle position at the time the image was taken( in front of the current vehicle position)
Front tire contact line( blue) Indicate estimated tire positions on the image.
Vehicle width lines( blue) Indicate the width of the vehicle including the outside rear view mirrors.
Rear tire contact line( blue) Indicate estimated tire positions on the image.
Tire position indicator lines( black, white) Indicates the estimated position of the rear tires.
Vehicle position indicator lines( blue) Indicates the estimated position of the vehicle. SUBARU Parking Assist / slip display
Indicates tire spinning by changing color and flashing the tire displayed. If the SUBARU Parking Assist detects a static object when the system is enabled, the indicator is displayed on the screen.( �P. 365)
Return switch Return to the previous screen Selecting the display
5
Driving
