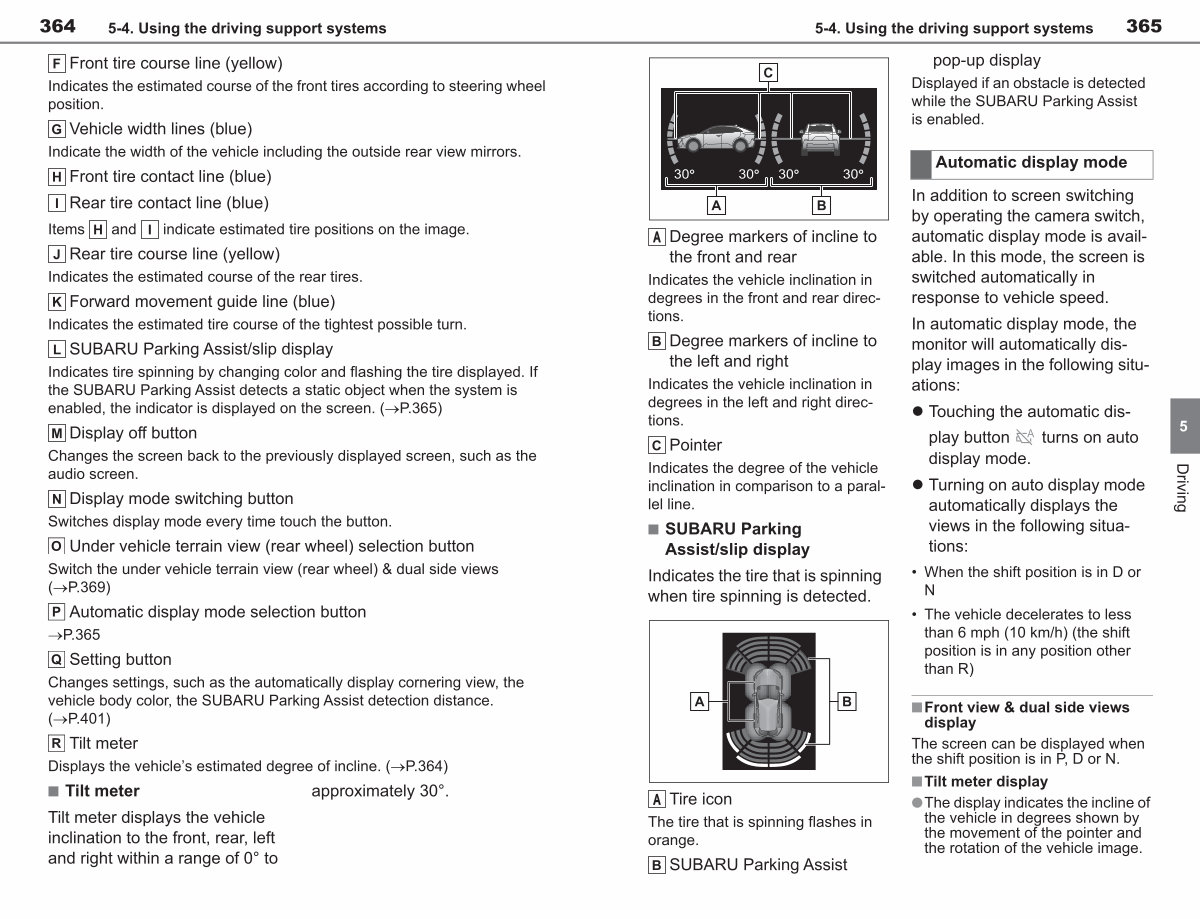

364 5-4. Using the driving support systems
Front tire course line( yellow)
Indicates the estimated course of the front tires according to steering wheel position.
Vehicle width lines( blue)
Indicate the width of the vehicle including the outside rear view mirrors. Front tire contact line( blue) Rear tire contact line( blue)
Items and indicate estimated tire positions on the image. Rear tire course line( yellow)
Indicates the estimated course of the rear tires. Forward movement guide line( blue)
Indicates the estimated tire course of the tightest possible turn. SUBARU Parking Assist / slip display
Indicates tire spinning by changing color and flashing the tire displayed. If the SUBARU Parking Assist detects a static object when the system is enabled, the indicator is displayed on the screen.( �P. 365)
Display off button
Changes the screen back to the previously displayed screen, such as the audio screen.
Display mode switching button Switches display mode every time touch the button.
Under vehicle terrain view( rear wheel) selection button
Switch the under vehicle terrain view( rear wheel) & dual side views( �P. 369)
Automatic display mode selection button �P. 365
Setting button
Changes settings, such as the automatically display cornering view, the vehicle body color, the SUBARU Parking Assist detection distance.( �P. 401)
Tilt meter Displays the vehicle’ s estimated degree of incline.( �P. 364) n Tilt meter
Tilt meter displays the vehicle inclination to the front, rear, left and right within a range of 0 ° to approximately 30 °.
