5-4. Using the driving support systems
363 reverse, or when judging road surface conditions during off-road driving.

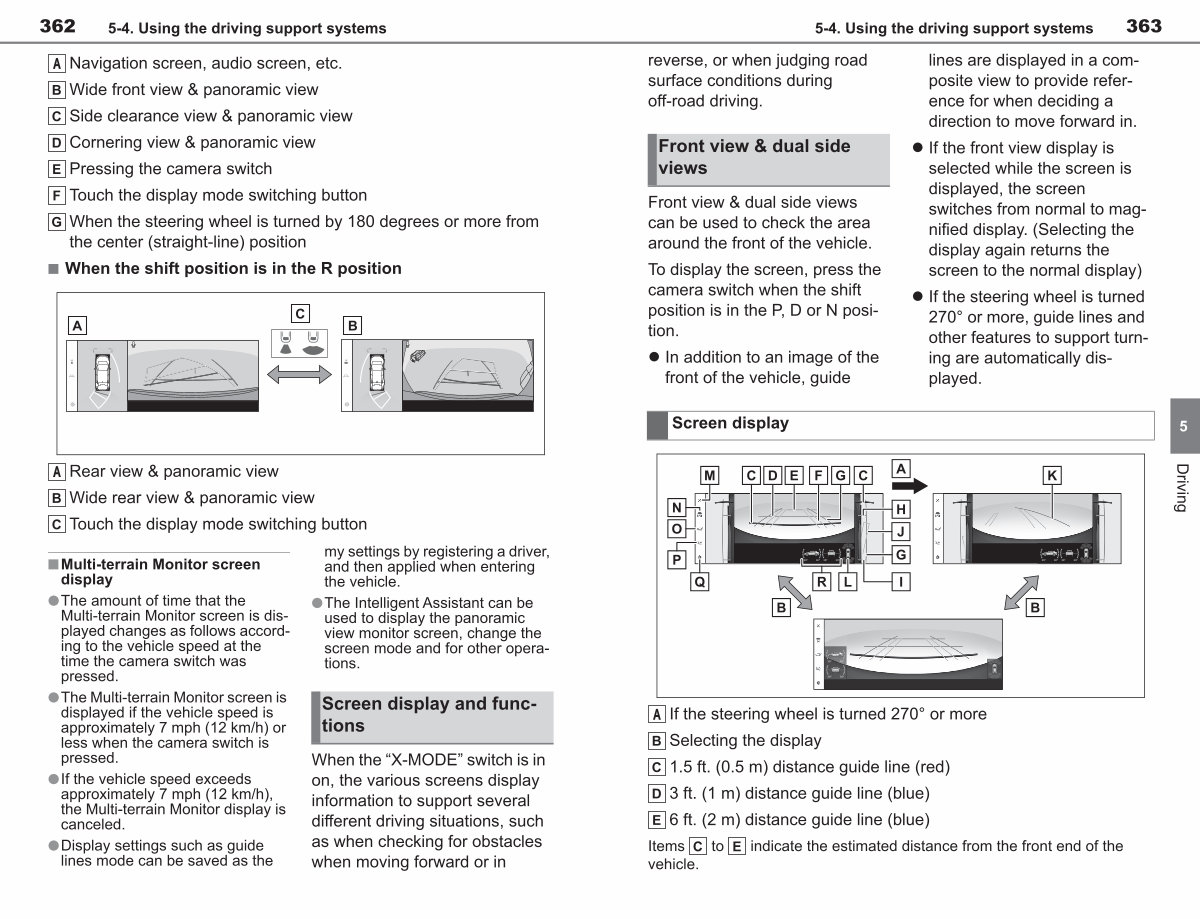

Front view & dual side views
Front view & dual side views can be used to check the area around the front of the vehicle.
To display the screen, press the camera switch when the shift position is in the P, D or N position.
• In addition to an image of the front of the vehicle, guide
lines are displayed in a composite view to provide reference for when deciding a direction to move forward in.
• If the front view display is selected while the screen is displayed, the screen switches from normal to magnified display.( Selecting the display again returns the screen to the normal display)
• If the steering wheel is turned 270 ° or more, guide lines and other features to support turning are automatically displayed.
Screen display 5
Driving
A |
If the steering wheel is turned 270 ° or more |
Selecting the display |
1.5 ft.( 0.5 m) distance guide line( red) |
3 ft.( 1 m) distance guide line( blue) |
6 ft.( 2 m) distance guide line( blue) |
Items |
to |
indicate the estimated distance from the front end of the |
vehicle. |
|
|
