5-4. Using the driving support systems
341

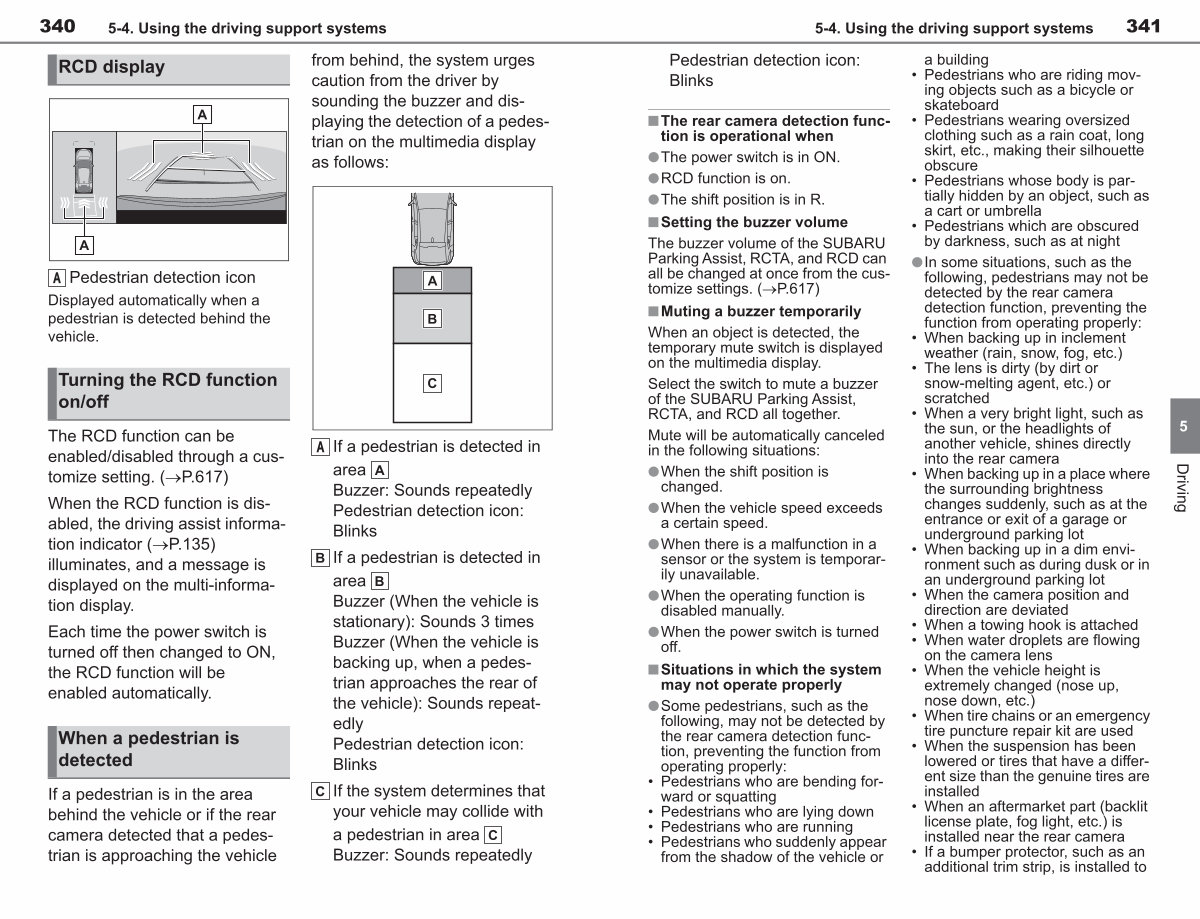

Pedestrian detection icon: Blinks
n The rear camera detection function is operational when
lThe power switch is in ON. lRCD function is on. lThe shift position is in R. n Setting the buzzer volume
The buzzer volume of the SUBARU
Parking Assist, RCTA, and RCD can all be changed at once from the customize settings.( �P. 617)
n Muting a buzzer temporarily
When an object is detected, the temporary mute switch is displayed on the multimedia display.
Select the switch to mute a buzzer of the SUBARU Parking Assist, RCTA, and RCD all together.
Mute will be automatically canceled in the following situations:
lWhen the shift position is changed.
lWhen the vehicle speed exceeds a certain speed.
lWhen there is a malfunction in a sensor or the system is temporarily unavailable.
lWhen the operating function is disabled manually.
lWhen the power switch is turned off.
n Situations in which the system may not operate properly
lSome pedestrians, such as the following, may not be detected by the rear camera detection function, preventing the function from operating properly:
• Pedestrians who are bending forward or squatting
• Pedestrians who are lying down
• Pedestrians who are running
• Pedestrians who suddenly appear
from the shadow of the vehicle or a building
• Pedestrians who are riding moving objects such as a bicycle or skateboard
• Pedestrians wearing oversized clothing such as a rain coat, long skirt, etc., making their silhouette
obscure
• Pedestrians whose body is partially hidden by an object, such as
a cart or umbrella
• Pedestrians which are obscured
by darkness, such as at night
lIn some situations, such as the following, pedestrians may not be
detected by the rear camera detection function, preventing the
function from operating properly:
• When backing up in inclement weather( rain, snow, fog, etc.)
• The lens is dirty( by dirt or snow-melting agent, etc.) or scratched
• When a very bright light, such as the sun, or the headlights of another vehicle, shines directly into the rear camera
• When backing up in a place where the surrounding brightness changes suddenly, such as at the entrance or exit of a garage or underground parking lot
• When backing up in a dim environment such as during dusk or in an underground parking lot
• When the camera position and direction are deviated
• When a towing hook is attached
• When water droplets are flowing on the camera lens
• When the vehicle height is
extremely changed( nose up,
nose down, etc.)
• When tire chains or an emergency
tire puncture repair kit are used
• When the suspension has been lowered or tires that have a different size than the genuine tires are installed
• When an aftermarket part( backlit license plate, fog light, etc.) is installed near the rear camera
• If a bumper protector, such as an additional trim strip, is installed to
