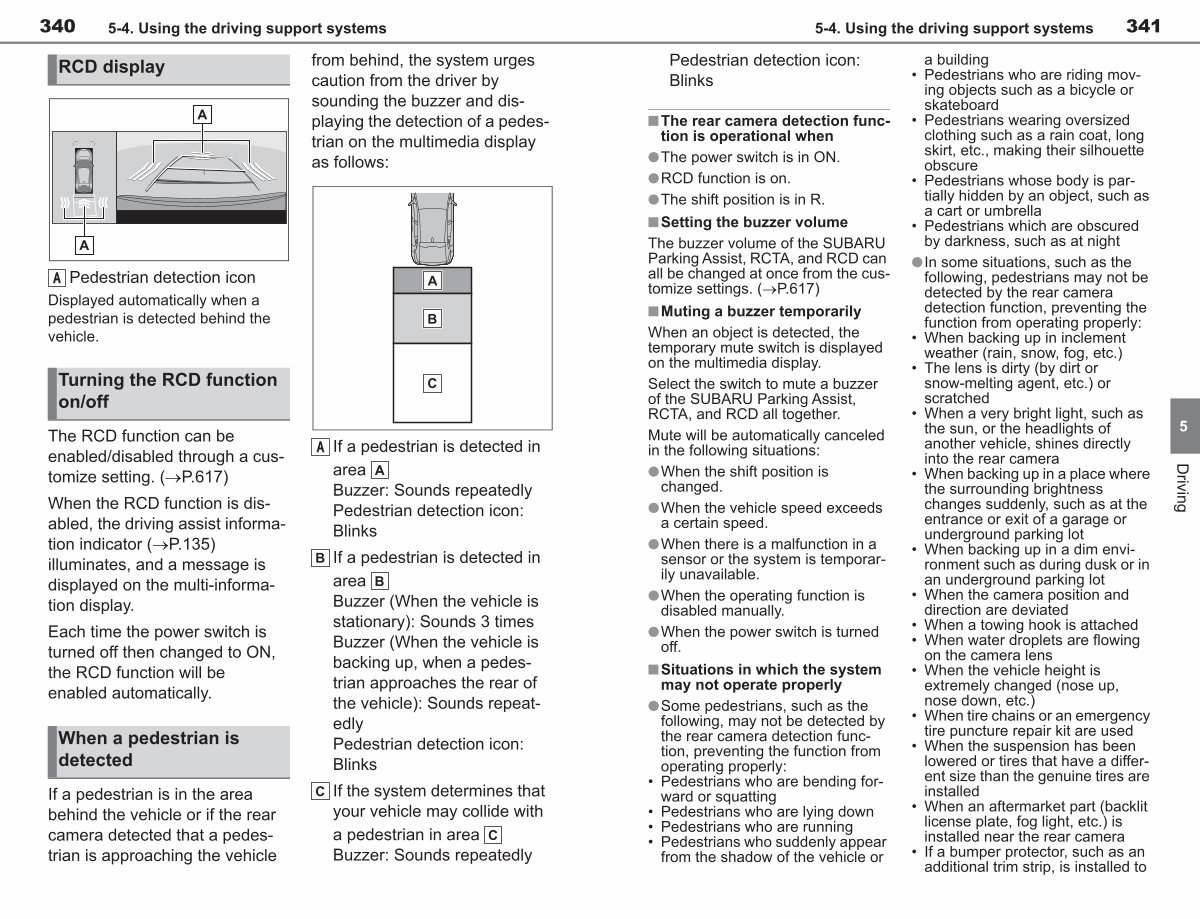

340 5-4. Using the driving support systems
RCD display from behind, the system urges caution from the driver by sounding the buzzer and displaying the detection of a pedestrian on the multimedia display as follows:
A
Pedestrian detection icon
Displayed automatically when a pedestrian is detected behind the vehicle.
Turning the RCD function on / off
The RCD function can be enabled / disabled through a customize setting.( �P. 617)
When the RCD function is disabled, the driving assist information indicator( �P. 135) illuminates, and a message is displayed on the multi-information display.
Each time the power switch is turned off then changed to ON, the RCD function will be enabled automatically.
When a pedestrian is detected
If a pedestrian is in the area behind the vehicle or if the rear camera detected that a pedestrian is approaching the vehicle
A If a pedestrian is detected in area Buzzer: Sounds repeatedly Pedestrian detection icon: Blinks
If a pedestrian is detected in area Buzzer( When the vehicle is stationary): Sounds 3 times Buzzer( When the vehicle is backing up, when a pedestrian approaches the rear of the vehicle): Sounds repeatedly Pedestrian detection icon: Blinks
If the system determines that your vehicle may collide with a pedestrian in area Buzzer: Sounds repeatedly
