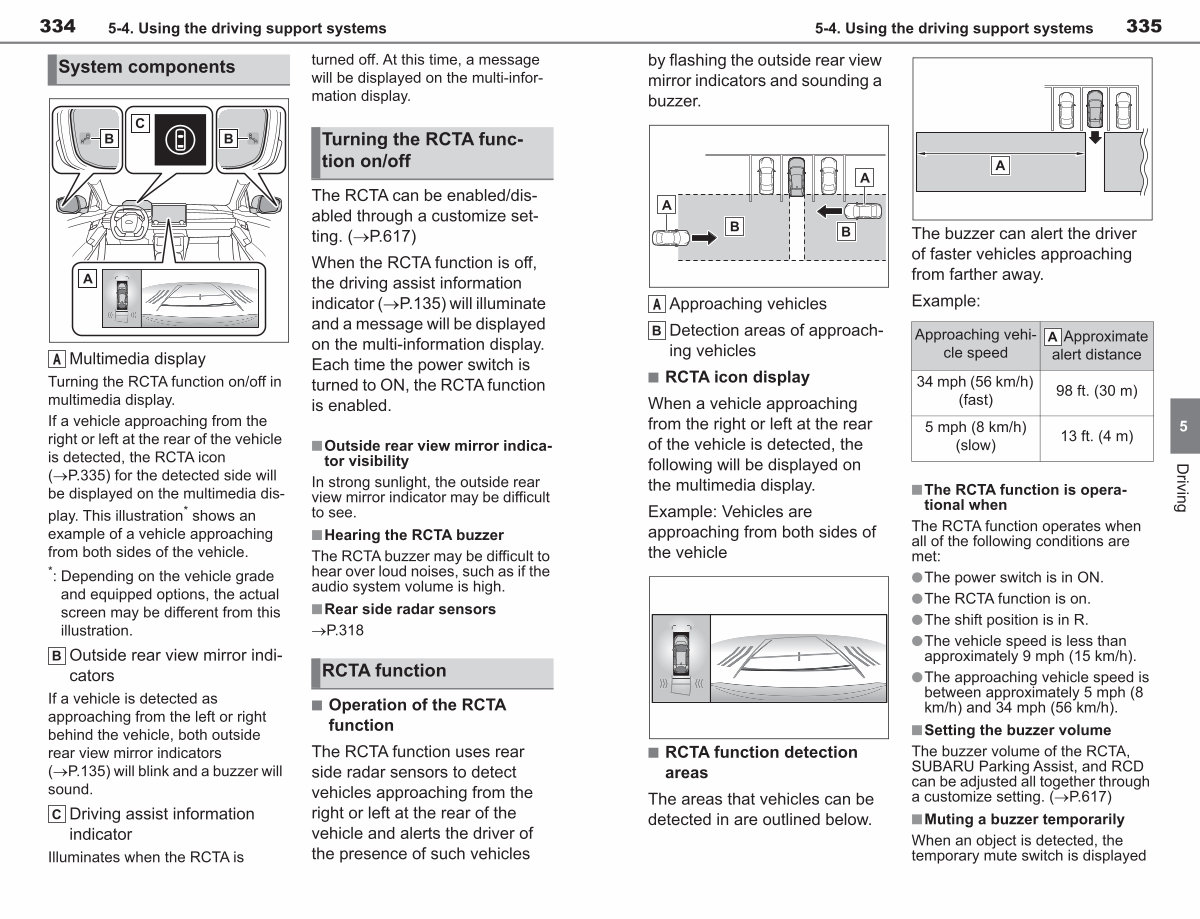

5-4. Using the driving support systems
335 by flashing the outside rear view mirror indicators and sounding a buzzer.
A Approaching vehicles
Detection areas of approaching vehicles
n RCTA icon display
When a vehicle approaching from the right or left at the rear of the vehicle is detected, the following will be displayed on the multimedia display.
Example: Vehicles are approaching from both sides of the vehicle
n RCTA function detection areas
The areas that vehicles can be detected in are outlined below.
The buzzer can alert the driver of faster vehicles approaching from farther away.
Example:
Approaching vehicle speed
34 mph( 56 km / h)( fast)
5 mph( 8 km / h)( slow)
Approximate alert distance
98 ft.( 30 m)
13 ft.( 4 m)
nThe RCTA function is operational when
The RCTA function operates when all of the following conditions are met:
lThe power switch is in ON. lThe RCTA function is on. lThe shift position is in R.
lThe vehicle speed is less than approximately 9 mph( 15 km / h).
lThe approaching vehicle speed is between approximately 5 mph( 8 km / h) and 34 mph( 56 km / h).
n Setting the buzzer volume
The buzzer volume of the RCTA, SUBARU Parking Assist, and RCD can be adjusted all together through a customize setting.( �P. 617)
nMuting a buzzer temporarily
When an object is detected, the temporary mute switch is displayed
5
Driving
